DS-LED06 LED street light manufacturer Die-casting integrated outdoor lighting LED street light 220v foot tile outdoor waterproof super bright power 100W 150W 200W 300W

DS-LED06 LED street light manufacturer Die-casting integrated outdoor lighting LED street light 220v foot tile outdoor waterproof super bright power 100W 150W 200W 300W

DS-LED06 LED street light outdoor road lighting, modular design independent module splicing, more convenient installation or maintenance, beautiful, fast and uniform heat dissipation, suitable for a variety of scenarios; The outer shell of the fuselage has been redesigned to ensure that the heat dissipation requirements are compatible with waterproof and dustproof, and the protection level reaches IP65; 60 international interface, Suitable for a variety of street lamp poles.

Quantity:
Availability:





Inquire Add to Basket

Model:
LED06
Brand:
DS
Code:
DS-LED06

>> Product Advantages

HIGH EFFICIENCY CHIPS

High light chip, Prey 3030 high lumen chip, can also be customized Philips Osram chip, chip can be produced according to requirements.

EXCELLENT HEAT DISSIPATION

The whole die-cast aluminum lamp shell, multi-interval heat dissipation hole, national standard module chip adopts high-quality aluminum fin heat dissipation, advanced heat dissipation design structure, effective heat dissipation, reduce lamp body loss.

UNIFORMED DISTRIBUTION

When installing LED lamp beads, use a grid-like layout to ensure that the spacing between each LED lamp bead is equal, to ensure that the light is evenly distributed, and to avoid too dense or sparse installation to ensure that the entire area is properly illuminated.

ELEGANT DESIGN

Integrated design, the lines are simple and bright, and its design integrates modern simple aesthetics, smooth lines, elegant and chic shapes, and new streamline aesthetic appearance design, helping to present the elegant beauty of the city.

ANTI-RUST TREATMENT

Environmental protection thickened aluminum, strong corrosion resistance, anodic oxidation scrub process; Refined steel screws, fixed and stable, all parts surface oxidation polishing anti-corrosion treatment, effectively prevent rust durable, extend the service life of the lamp.

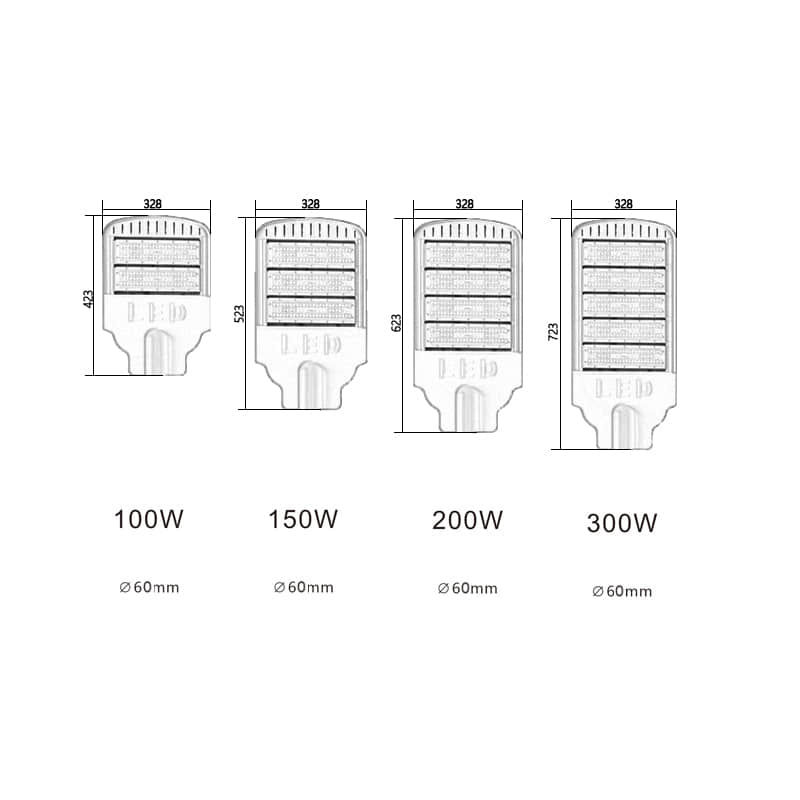

Product Dimensions

>> Product Specifications

Model No.	DS-LED06-100W	DS-LED06-150W	DS-LED06-200W	DS-LED06-300W
Light source	Cree/Bridgelux/Philips/Osram/San’an
Lumen output	12000lm-19000lm	18000lm-28500lm	24000lm-38000lm	36000lm-57000lm
CRI	Ra>70
CCT	5000K standard,3000K-6000K available upon request
Luminaire efficacy	120lm/w - 190lm/w
Power consumption (W)	100W	150W	200W	300W
Operating frequency	50/60Hz
Operating voltage range	100-240V AC
Power factor	>0.9/240VAC at full load
Maximum current	0.5A	0.75A	1A	1.4A
Driver type	Moso/Meanwell/Inventronics
Driver efficiency	>90%
IP rating	IP65
Impact rating	IK08
Weight	/	/	/	/
Ambient temperature range	-40℃ to +50℃
Material Composition (body)	Die-cast aluminium
Material Composition (heat sink)	Anodized aluminium
Expected Lifespan	>100,000 hours @L70
Controls -Optional	Photoelectric(PE)cell 24VDC driver
Accessories	Pole mounted adaptor
Warranty*	5years
Dimensions(mm)	423328100mm	523328100mm	623328100mm	723328100mm

Data subject to change without notice

Dialux simulation available to meet end customer's needs

POWER	POLE HRIGHT	ROAD WIDTH	POLE DISTANCE	EAV	EMAX	UO
30W	6M	5M	18M	18	35	0.371
40W	7M	5M	21M	20	38	0.416
50W	8M	5M	24M	20	37	0.458
60W	9M	5M	27M	20	34	0.493
Parameters can be adjusted according to specific requirements from end customer

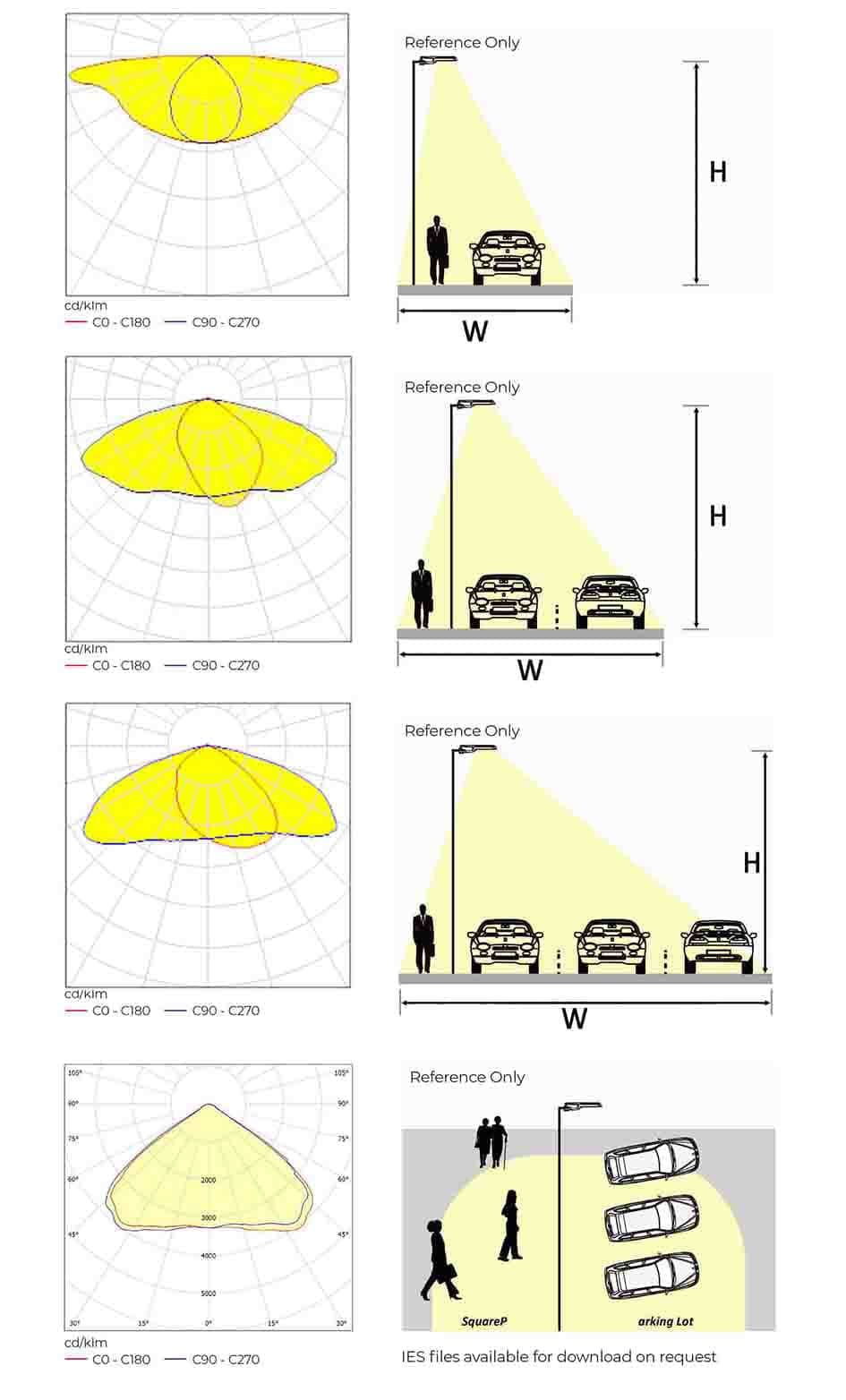

>> LED Distribution Diagram

DS-LED01 Commercial LED street light with sensor from China LED ( (4)

Type I

Application

Single Driveway| Walkway/ Cycleway| Branch Roads

IES Classification: Type I - short,Medium,long

W≤1*H

Type II

Application

Two Driveway | Driveway Entrance | Urban Main Roads

IES Classification: Type II - short,Medium,long

1*H＜W≤1.75*H

Type III

Application

Three Driveway | Highway | Parking Lot/Area

IES Classification: Type III - short,Medium,long

1.75*H＜W≤2.75*H

Type VS

Application

Parking Lot | Square | Area

IES Classification: Type VS - short,Medium,long

Diameter≤1*H

>> Product Applications

1. Outdoor road

Urban roads, highways, rural roads, etc., provide pedestrians and vehicles with safe lighting for driving and walking at night, and its high brightness and good lighting uniformity can ensure the visibility of the road; At the same time, the traffic interference caused by frequent replacement of lamps is reduced, and the high color rendering helps the driver accurately judge the road condition.

2. Public place

Urban squares, parks, pedestrian streets, scenic spots and other municipal lighting places, its various light colors and lighting effects can create a comfortable and warm atmosphere to meet the needs of people's leisure and entertainment at night, saving energy and beautifying the environment.

3.Docks and ports

It can work stably in a humid and salt-spray environment, provide reliable lighting for dock operations and port traffic, and ensure the safety of cargo handling and ship entering and leaving the port.

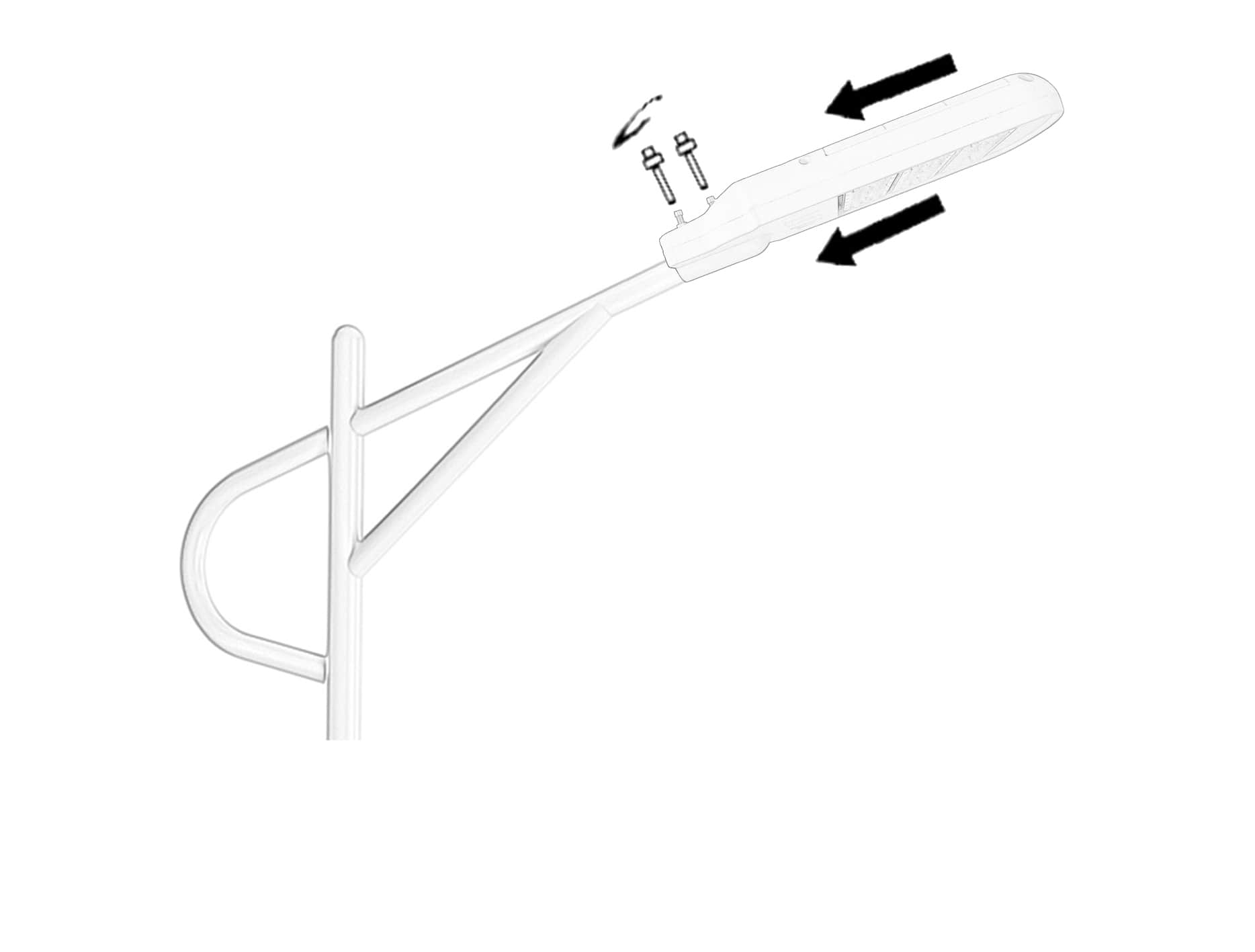

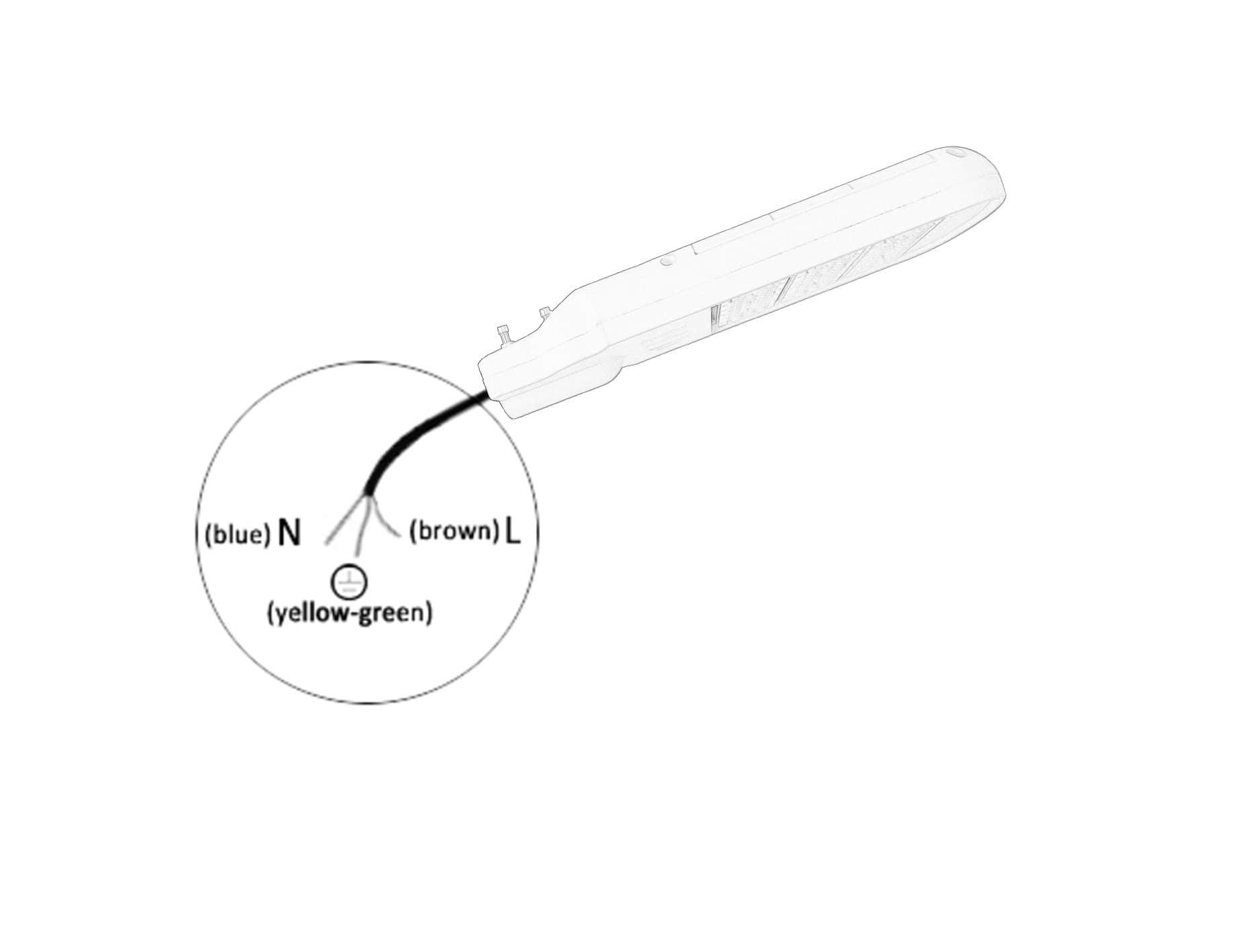

>> Product installation Guide
