LED05
DS
DS-LED05
>> Product Advantages
| HIGH EFFICIENCY CHIPS Brand efficient chip, good light output stability, slow brightness attenuation speed, can continue to provide stable lighting services; High brightness, low color temperature drift, high color reproduction, to meet the lighting needs of different scenes. |
| EXCELLENT HEAT DISSIPATION The lamp shell is made of high-quality aluminum alloy die-cast aluminum process, with good heat dissipation performance and mechanical strength, which can quickly conduct the heat generated by the LED chip, effectively reduce the working temperature of the LED, and extend its service life. |
| UNIFORMED DISTRIBUTION Multiple LED lamp beads are evenly distributed on the aluminum substrate, which helps the heat to be evenly distributed, and the uniform distribution can make the light more uniform, the glare control is good, and the appearance is beautiful and coordinated. |
| ELEGANT DESIGN Use soft, natural and continuous lines to outline the outline of the lamp shell, avoiding hard turns and corners to create an elegant visual feeling. |
| ANTI-RUST TREATMENT The use of high-quality aluminum, the source has a strong rust resistance basis; Surface painting/anodizing treatment, strong corrosion resistance, never cracking, to ensure the quality of LED street light rust treatment to achieve the best results. |

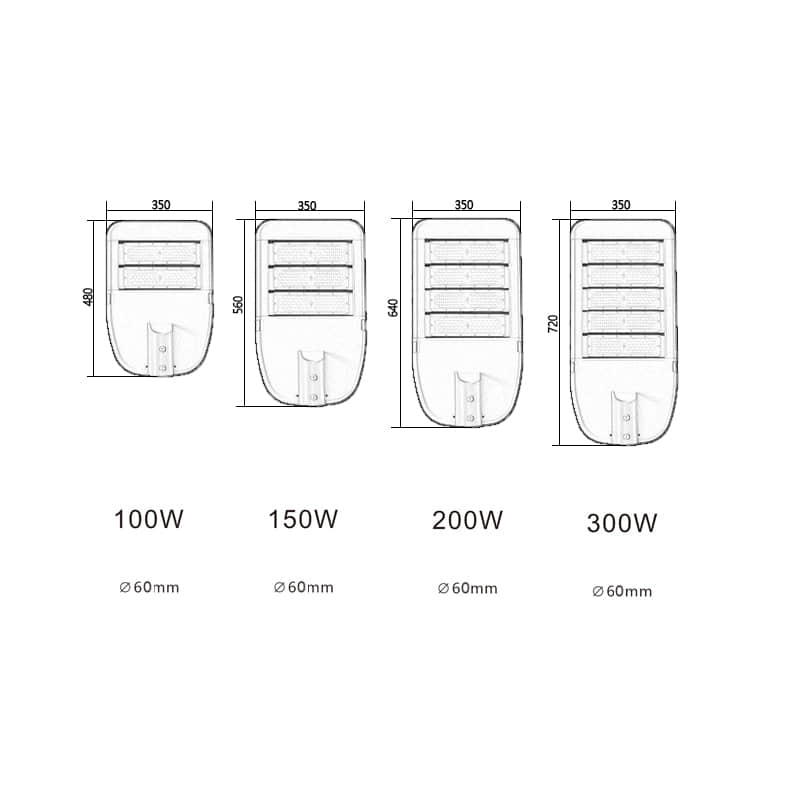

Product Dimensions
>> Product Specifications
Model No. | DS-LED05-100W | DS-LED05-150W | DS-LED05-200W | DS-LED05-300W |
Light source | Cree/Bridgelux/Philips/Osram/San’an | |||
Lumen output | 12000lm-19000lm | 18000lm-28500lm | 24000lm-38000lm | 36000lm-57000lm |
CRI | Ra>70 | |||
CCT | 5000K standard,3000K-6000K available upon request | |||
Luminaire efficacy | 120lm/w - 190lm/w | |||
Power consumption (W) | 100W | 150W | 200W | 300W |
Operating frequency | 50/60Hz | |||
Operating voltage range | 100-240V AC | |||
Power factor | >0.9/240VAC at full load | |||
Maximum current | 0.5A | 0.75A | 1A | 1.4A |
Driver type | Moso/Meanwell/Inventronics | |||
Driver efficiency | >90% | |||
IP rating | IP65 | |||
Impact rating | IK08 | |||
Weight | / | / | / | / |
Ambient temperature range | -40℃ to +50℃ | |||
Material Composition (body) | Die-cast aluminium | |||
Material Composition (heat sink) | Anodized aluminium | |||
Expected Lifespan | >100,000 hours @L70 | |||
Controls -Optional | Photoelectric(PE)cell 24VDC driver | |||
Accessories | Pole mounted adaptor | |||
Warranty* | 5years | |||
Dimensions(mm) | 480*350*135mm | 560*350*135mm | 640*350*135mm | 720*350*135mm |
Data subject to change without notice
Dialux simulation available to meet end customer's needs
POWER | POLE HRIGHT | ROAD WIDTH | POLE DISTANCE | EAV | EMAX | UO |
30W | 6M | 5M | 18M | 18 | 35 | 0.371 |
40W | 7M | 5M | 21M | 20 | 38 | 0.416 |
50W | 8M | 5M | 24M | 20 | 37 | 0.458 |
60W | 9M | 5M | 27M | 20 | 34 | 0.493 |
Parameters can be adjusted according to specific requirements from end customer | ||||||

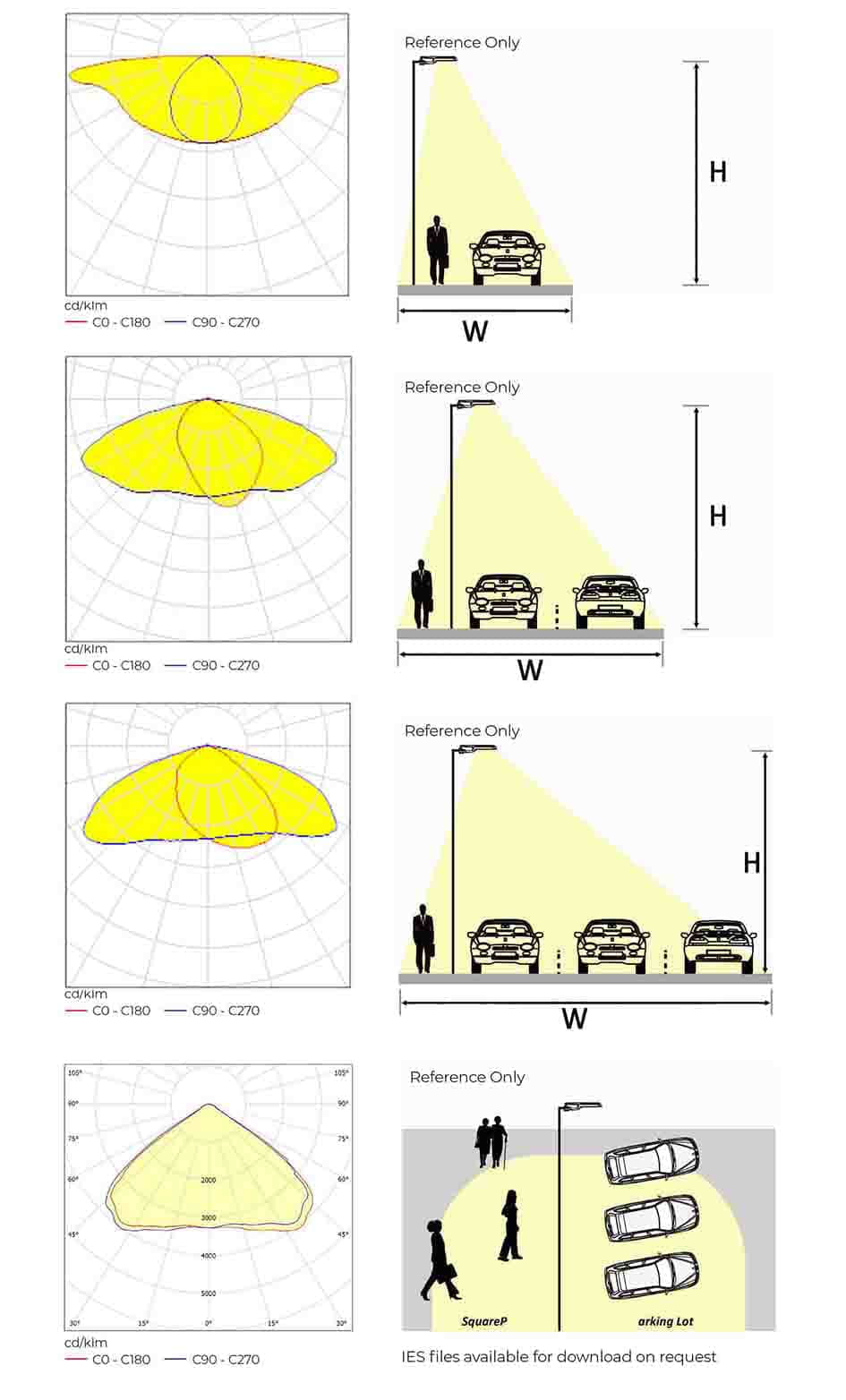

>> LED Distribution Diagram
Type I
Application
Single Driveway| Walkway/ Cycleway| Branch Roads
IES Classification: Type I - short,Medium,long
W≤1*H
Type II
Application
Two Driveway | Driveway Entrance | Urban Main Roads
IES Classification: Type II - short,Medium,long
1*H＜W≤1.75*H
Type III
Application
Three Driveway | Highway | Parking Lot/Area
IES Classification: Type III - short,Medium,long
1.75*H＜W≤2.75*H
Type VS
Application
Parking Lot | Square | Area
IES Classification: Type VS - short,Medium,long
Diameter≤1*H
>> Product Applications
1. Outdoor road
The urban main road traffic flow is large, the speed is fast, the need for high brightness and uniform lighting to ensure traffic safety and driving sight distance. LED street lights have good light distribution performance, can provide enough brightness, and its high color rendering also helps drivers clearly distinguish road conditions and traffic signs.
2. Plaza and parking
As a public activity space, it is necessary to create a bright and comfortable lighting environment. The low color temperature and high color performance of LED street lights are enough to better restore the environmental color and show the beauty of the natural landscape. At the same time, its anti-glare design can also avoid visual discomfort to people.
3.Industry zone
Roads in industrial parks are usually wide and require high brightness lighting. LED street lights can meet this demand, while its long life and low maintenance costs are also suitable for industrial park requirements for lamp reliability, reducing the maintenance workload and cost caused by lamp failure.

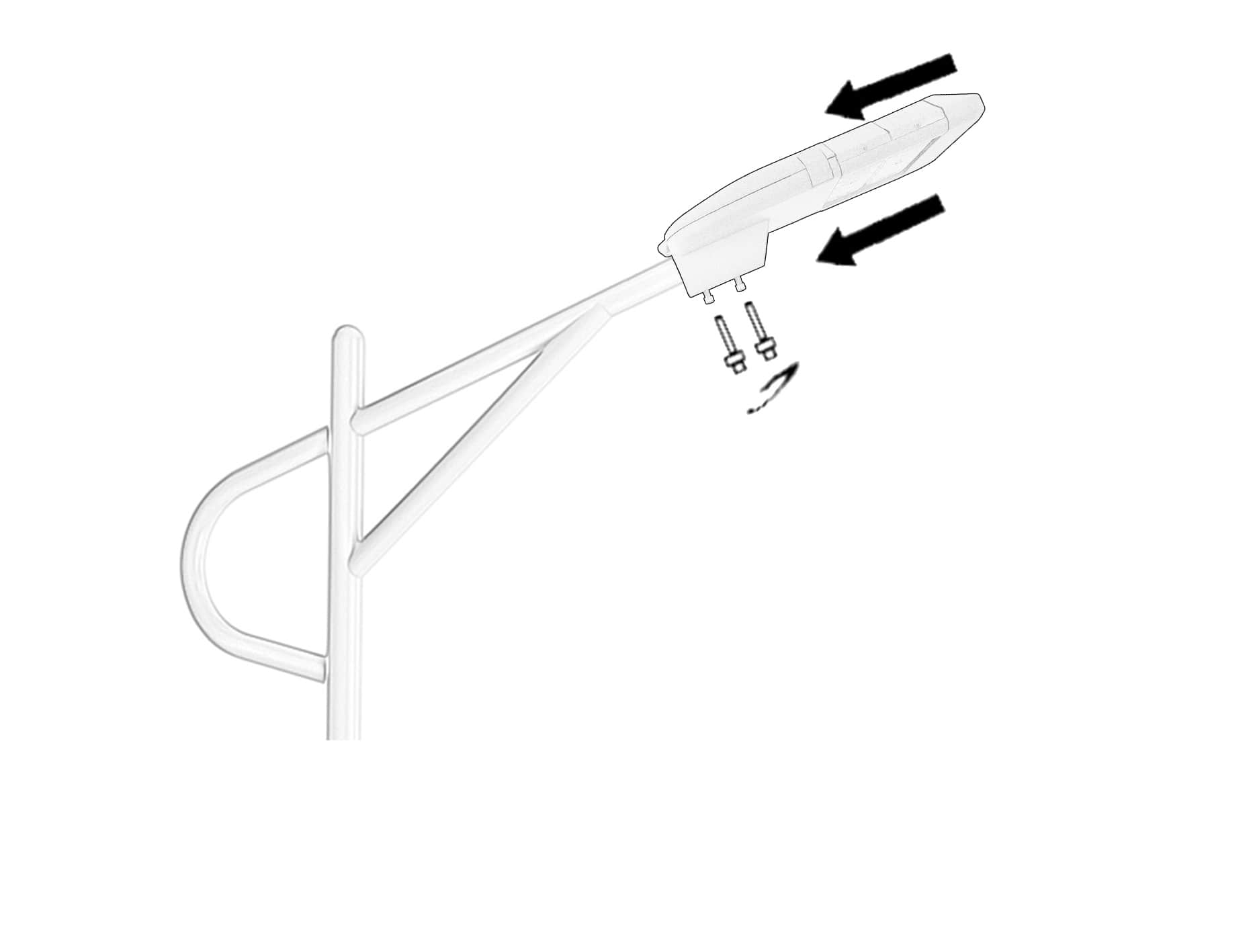

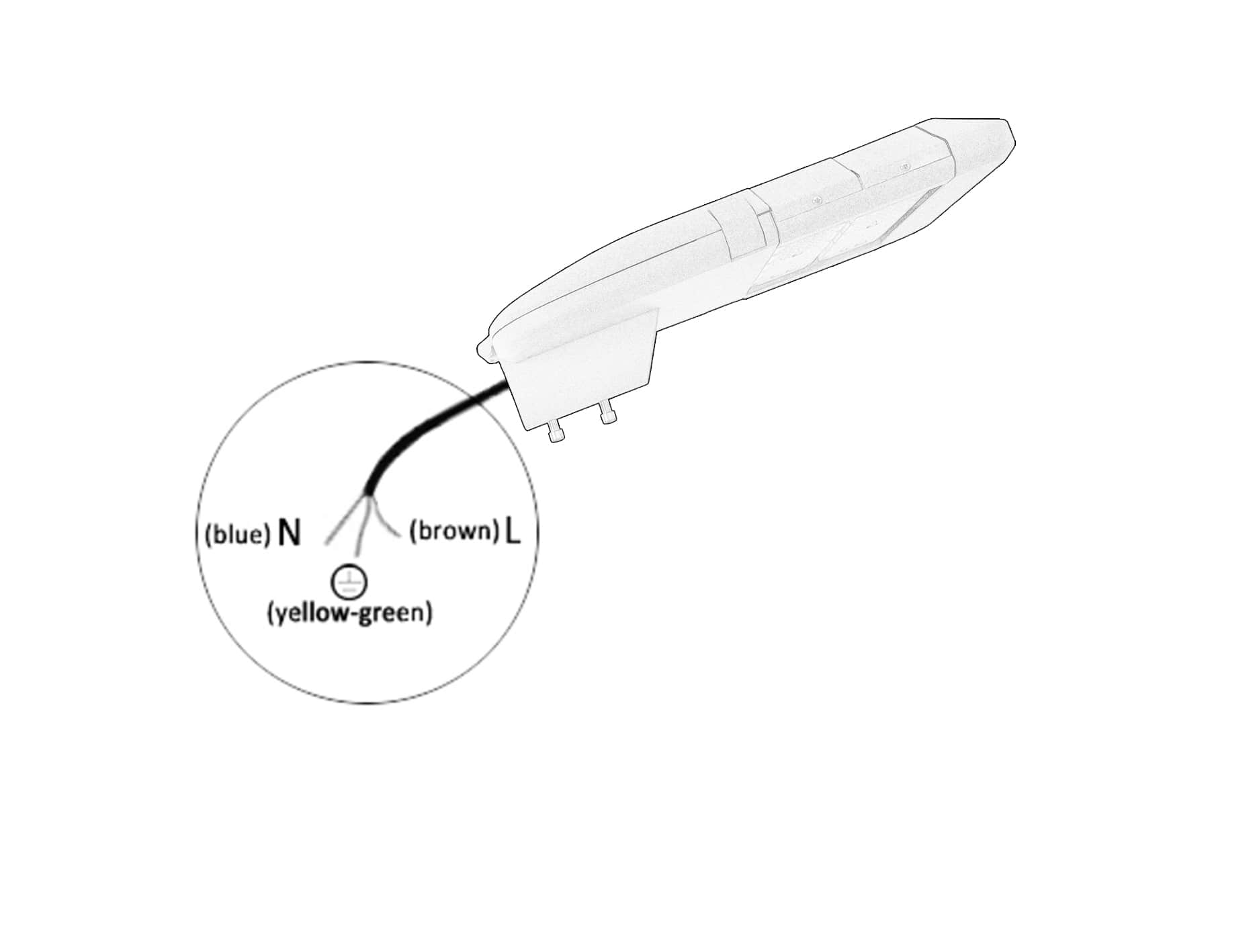

>> Product installation Guide
