DS-LED02 Outdoor LED Street Lamp, Public LED Streetlight,commercial St Light(50W-100W-150W-200W)

DS-LED02 Outdoor LED Street Lamp, Public LED Streetlight,commercial St Light(50W-100W-150W-200W)

Our energy-saving LED street lamp features best LED chips from leading brands such as Cree, Bridgelux, Philips, and San’an, resulting in reduced energy consumption,thus cost savings. These lights are designed with advanced heat dissipation technology, leading to a longer lifespan compared to traditional lighting options. The even and consistent illumination provided by these lights improves the safety for both drivers and pedestrians on roadways. Additionally, the st lights offer customizable lighting distribution options to meet a variety of lighting requirements.

Quantity:
Availability:





Inquire Add to Basket

Model:
LED02
Brand:
DS
Code:
DS-LED02

>> Product Advantages

HIGH EFFICIENCY CHIPS

3030 and 5050 LED chips are both available for customers to choose from, catering to different usage needs. The 3030 chips have a normal efficiency of 120-160LM/W, while the 5050 chips have a normal efficiency of 130-190LM/W.

EXCELLENT HEAT DISSIPATION

The use of 6060 aluminum in the design ensures excellent heat dissipation and good corrosion resistance, significantly extending the lifespan of the LED chips to over 100,000 hours.

UNIFORMED DISTRIBUTION

The modular design of the lights ensures uniform light distribution, as multiple LED chips are closely arranged on the same aluminum substrate, allowing the emitted light to blend together seamlessly.

ELEGANT DESIGN

The design of the lights is simple, fashionable, and elegant, providing practicality at a reasonable cost.

ANTI-RUST TREATMENT

All accessories undergo anti-rust treatment, further extending the overall lifespan of the lamp.

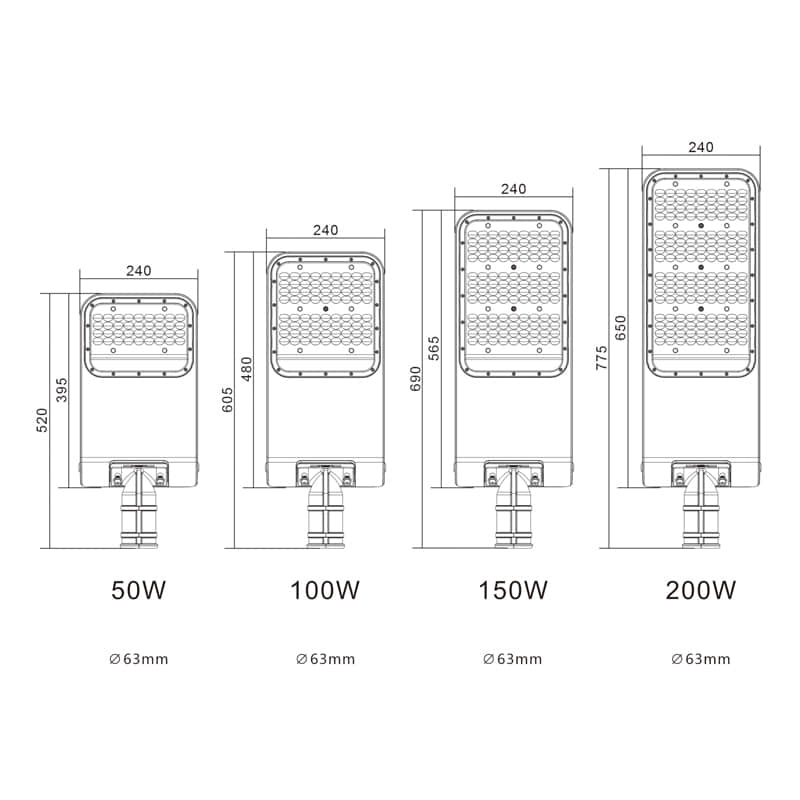

Product Dimensions

>> Product Specifications

Model No.	DS-LED02-50W	DS-LED02-100W	DS-LED02-150W	DS-LED02-200W
Light source	Cree/Bridgelux/Philips/Osram/San’an
Lumen output	6500lm-8500lm	13000lm-17000lm	19500lm-25500lm	26000lm-34000lm
CRI	Ra>70
CCT	5000K standard,3000K-6000K available upon request
Luminaire efficacy	100lm/w
Power consumption (W)	50W	100W	150W	200W
Operating frequency	50/60Hz
Operating voltage range	100-240V AC
Power factor	>0.9/240VAC at full load
Maximum current	0.25A	0.5A	0.75A	1A
Driver type	Moso/Meanwell/Inventronics
Driver efficiency	>90%
IP rating	IP65
Impact rating	IK08
Weight	/	/	/	/
Ambient temperature range	-40℃ to +50℃
Material Composition (body)	Die-cast aluminium
Material Composition (heat sink)	Anodized aluminium
Expected Lifespan	>100,000 hours @L70
Controls -Optional	Photoelectric(PE)cell 24VDC driver
Accessories	Pole mounted adaptor
Warranty*	5years
Dimensions(mm)	52024078.5mm	60524078.5mm	69024078.5mm	77524078.5mm

Data subject to change without notice

Dialux simulation available to meet end customer's needs

POWER	POLE HRIGHT	ROAD WIDTH	POLE DISTANCE	EAV	EMAX	UO
30W	6M	5M	18M	18	35	0.371
40W	7M	5M	21M	20	38	0.416
50W	8M	5M	24M	20	37	0.458
60W	9M	5M	27M	20	34	0.493
Parameters can be adjusted according to specific requirements from end customer

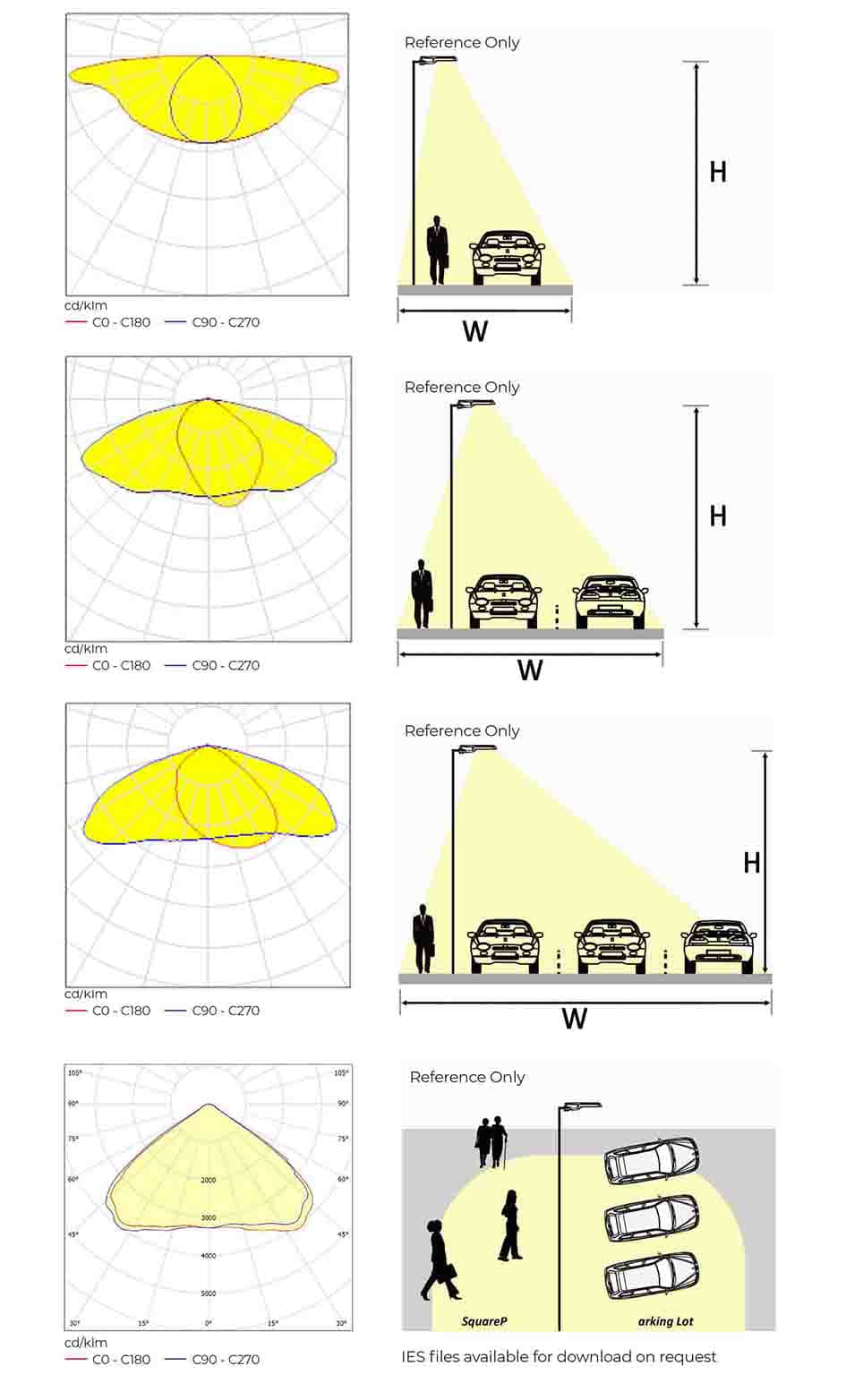

>> LED Distribution Diagram

DS-LED01 Commercial LED street light with sensor from China LED ( (4)

Type I

Application

Single Driveway| Walkway/ Cycleway| Branch Roads

IES Classification: Type I - short,Medium,long

W≤1*H

Type II

Application

Two Driveway | Driveway Entrance | Urban Main Roads

IES Classification: Type II - short,Medium,long

1*H＜W≤1.75*H

Type III

Application

Three Driveway | Highway | Parking Lot/Area

IES Classification: Type III - short,Medium,long

1.75*H＜W≤2.75*H

Type VS

Application

Parking Lot | Square | Area

IES Classification: Type VS - short,Medium,long

Diameter≤1*H

>> Product Applications

1. Streets and highways

In order to keep drivers safe and visible on the road, it is crucial to have proper lighting on streets and highways. This lighting should provide adequate brightness, measured in lux, with uniformity to prevent glare and dark spots. Additionally, it should have good color rendering to accurately show object colors and energy-efficient fixtures to save on electricity costs.

2. Parking lots/Pathways/sidewalks

When it comes to parking lots, pathways, and sidewalks, it is essential to have sufficient brightness for visibility and safety. Areas with high traffic flow or vehicle movement require brighter lights to reduce the risk of accidents and improve security.

3. Industrial and commercial areas

The lighting in these areas serves primarily for security purposes and should be durable and weather-resistant to withstand harsh conditions like rain, snow, and extreme temperatures. It should also be energy-efficient to save costs for the owner in the long run.

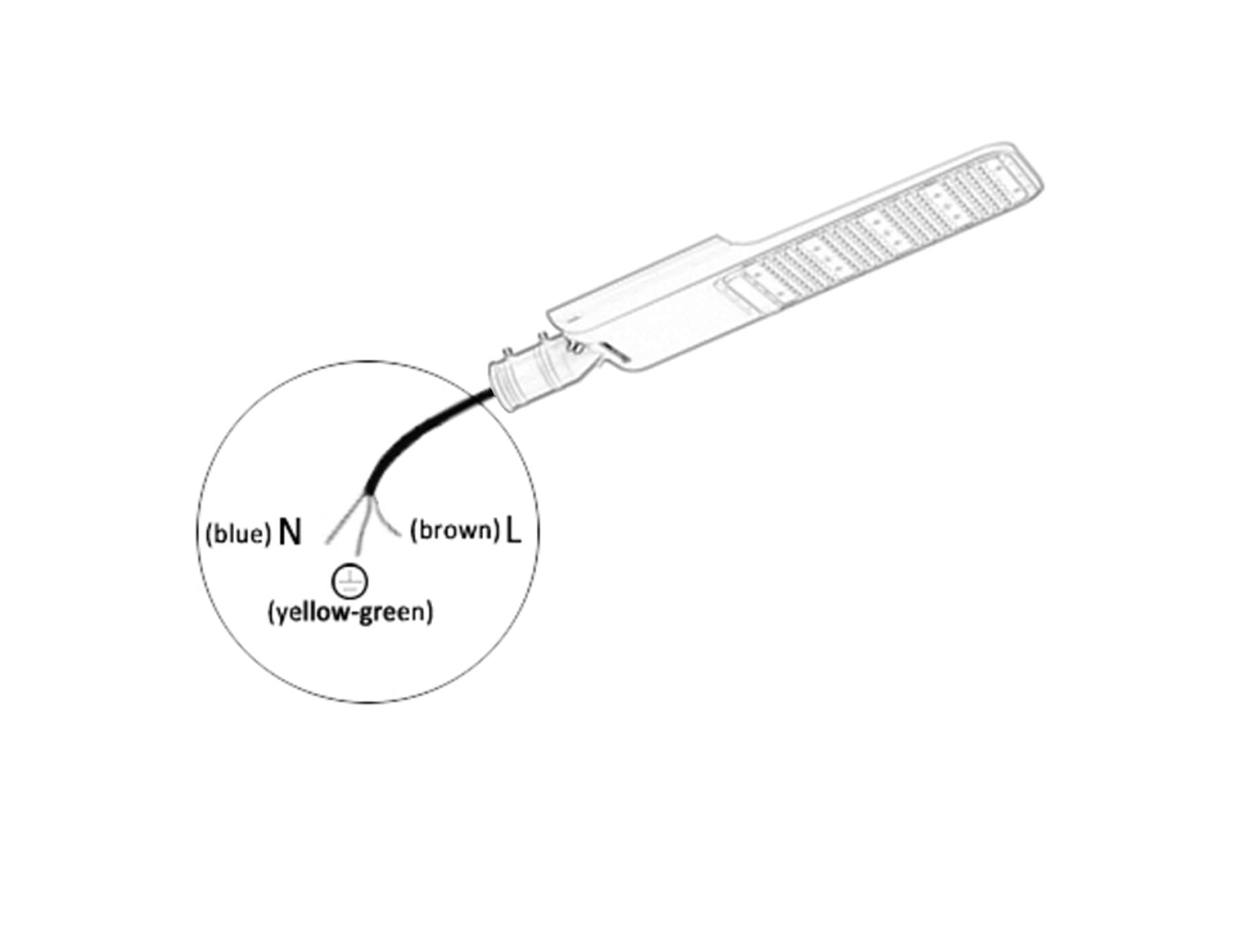

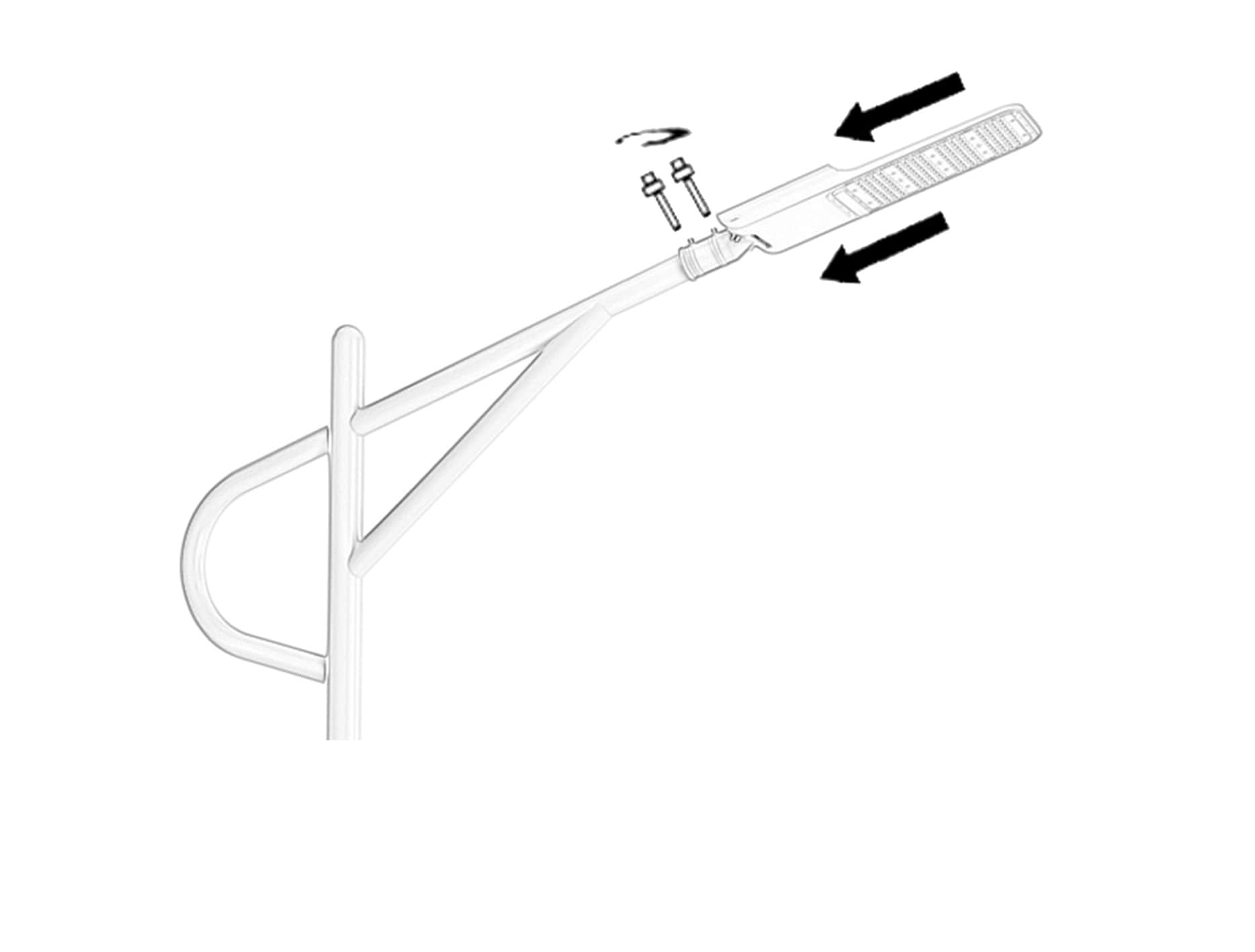

>> Product installation Guide
