>> Product Advantages
| HIGH EFFICIENCY CHIPS 3030 or 5050 LED chips are both available for customer’s choice to meet different using demand, normal efficiency can reach 120-160LM/W for 3030 chips and 130-190LM/W for 5050 chips. |
| EXCELLENT HEAT DISSIPATION Excellent heat dissipation characteristic by using 6060 aluminum which is also with good corrosion resistance, and helps to extend the lifespan of LED chips significantly(≥100000hours). |
| UNIFORMED DISTRIBUTION COB design makes lights distribution more uniformed since the multiple LED chips are closely arranged on the same aluminum substrate, the emitted light can be better mixed together. |
| ELEGANT DESIGN Beautiful and elegant, adopting simple and fashionable design style, extremely practical at reasonable cost. |
| ANTI-RUST TREATMENT All accessories are processed with anti-rust treatment, extend the service lifespan of whole lamp . |

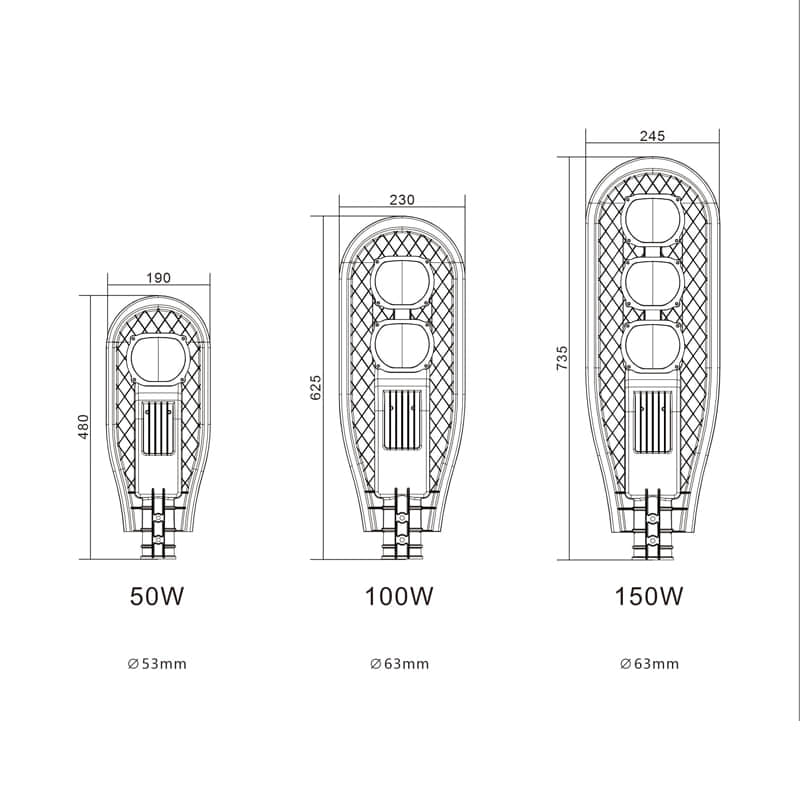

Product Dimensions
>> Product Specifications
Model No. | DS-LED01-50W | DS-LED01-100W | DS-LED01-150W |
Light source | Cree/Bridgelux/Philips/Osram/San’an | ||
Lumen output | 5000lm | 10000lm | 15000lm |
CRI | Ra>70 | ||
CCT | 5000K standard,3000K-6000K available upon request | ||
Luminaire efficacy | 100lm/w | ||
Power consumption (W) | 50W | 100W | 150W |
Operating frequency | 50/60Hz | ||
Operating voltage range | 100-240V AC | ||
Power factor | >0.9/240VAC at full load | ||
Maximum current | 0.25A | 0.5A | 0.75A |
Driver type | Moso/Meanwell/Inventronics | ||
Driver efficiency | >90% | ||
IP rating | IP65 | ||
Impact rating | IK08 | ||
Weight | 0.9kgs | 1.6kgs | 2.0kgs |
Ambient temperature range | -40℃ to +50℃ | ||
Material Composition (body) | Die-cast aluminium | ||
Material Composition (heat sink) | Anodized aluminium | ||
Expected Lifespan | >100,000 hours @L70 | ||
Controls -Optional | Photoelectric(PE)cell 24VDC driver | ||
Accessories | Pole mounted adaptor | ||
Warranty* | 5years | ||
Dimensions(mm) | 480*190*70mm | 625*230*80mm | 735*245*80mm |
Data subject to change without notice
Dialux simulation available to meet end customer's needs
POWER | POLE HRIGHT | ROAD WIDTH | POLE DISTANCE | EAV | EMAX | UO |
30W | 6M | 5M | 18M | 18 | 35 | 0.371 |
40W | 7M | 5M | 21M | 20 | 38 | 0.416 |
50W | 8M | 5M | 24M | 20 | 37 | 0.458 |
60W | 9M | 5M | 27M | 20 | 34 | 0.493 |
Parameters can be adjusted according to specific requirements from end customer | ||||||
>> LED Distribution Diagram
Type I
Application
Single Driveway| Walkway/ Cycleway| Branch Roads
IES Classification: Type I - short,Medium,long
W≤1*H
Type II
Application
Two Driveway | Driveway Entrance | Urban Main Roads
IES Classification: Type II - short,Medium,long
1*H＜W≤1.75*H
Type III
Application
Three Driveway | Highway | Parking Lot/Area
IES Classification: Type III - short,Medium,long
1.75*H＜W≤2.75*H
Type VS
Application
Parking Lot | Square | Area
IES Classification: Type VS - short,Medium,long
Diameter≤1*H
>> Product Applications
1. Streets and highways
to ensure safety and visibility of drivers,street and highways lighting need to be designed with adequate illuminance levels which is usually measured in lux, excellent uniformity to minimize glare and shadows, higher color rendering to accurately render colors of objects and energy saving lamp fixture to save electricity bills for long time working.
2. Parking lots/Pathways/sidewalks
For parking lots, pathways, and sidewalks, it is important to have sufficient brightness to ensure visibility and safety. Brighter lights are typically required in areas with high traffic flow or vehicle movement to reduce the risk of accidents and enhance security.
3. Industrial and commercial areas
the lighting in these areas provide basically lighting for security purpose, must be durable and weather-resistant to withstand harsh environmental conditions such as rain, snow, and extreme temperatures. at the same time, it should have higher energy efficiency to save cost for the owner.

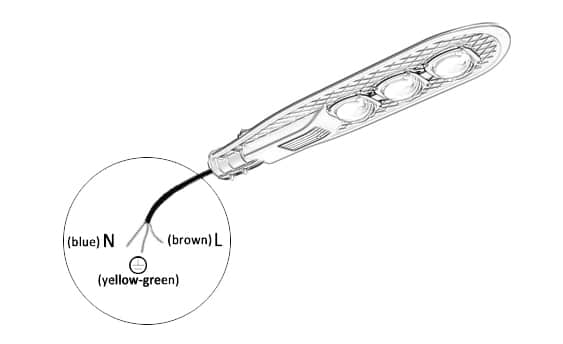

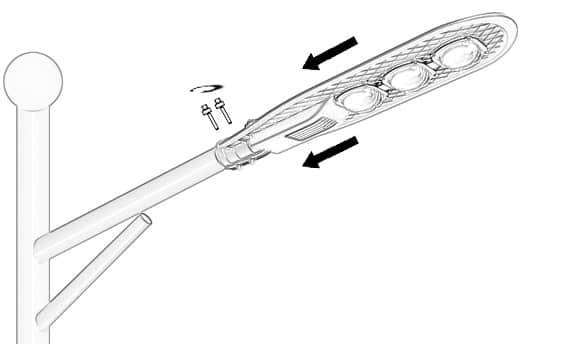

>> Product installation Guide
