LED03
DS
DS-LED03
>> Product Advantages
| HIGH EFFICIENCY CHIPS Two options are available for customers’ choice, one is using 3030 chips, the other one is using 5050 LED chips, the efficiency of 3030 chips is 120LM-160LM/W with economical cost, 5050 chips can reach 130LM-190LM/W. |
| EXCELLENT HEAT DISSIPATION To extend the lifespan of LED light, good thermal heat dissipation is important influencing factor. our LED street light adopts 6060 aluminum in the design ensures excellent heat dissipation, meanwhile aluminum fixture has great corrosion resistance, significantly extending the lifespan of the LED chips to over 100,000 hours. |
| UNIFORMED DISTRIBUTION Glare and shadows can raise the chances of car crashes. An effective LED pole light should provide even distribution of light to help drivers navigate safely and comfortably. The modular structure of these lights guarantees consistent light distribution, with numerous LED chips placed closely together on the same aluminum base, allowing the light to merge seamlessly. |
| ELEGANT DESIGN The design of the lights is simple, fashionable, and elegant, providing practicality at a reasonable cost. |
| ANTI-RUST TREATMENT All accessories undergo anti-rust treatment, further extending the overall lifespan of the lamp. |

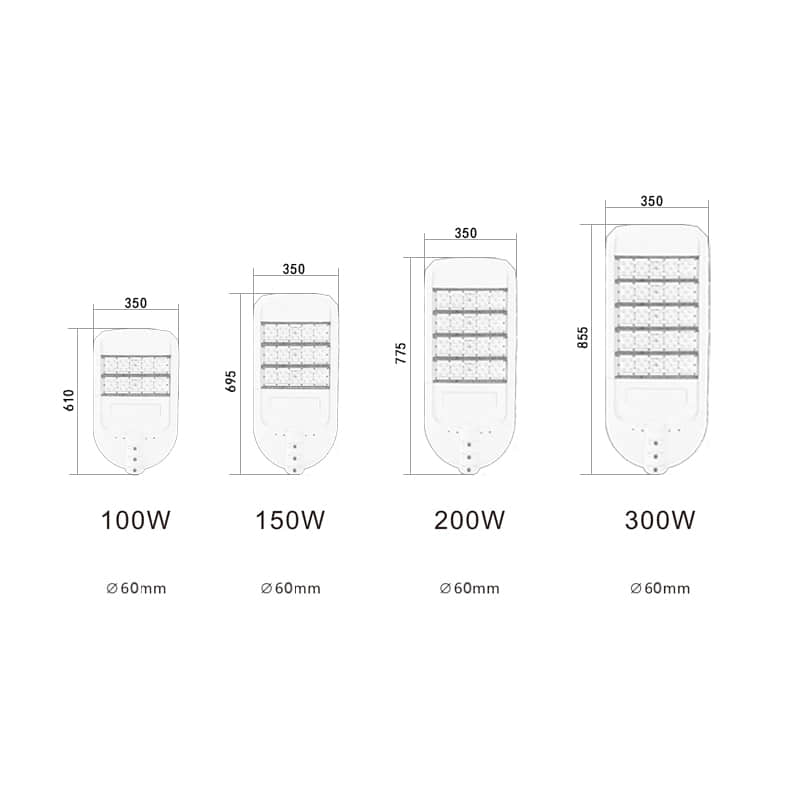

Product Dimensions
>> Product Specifications
Model No. | DS-LED03-100W | DS-LED03-150W | DS-LED03-200W | DS-LED03-300W |
Light source | Cree/Bridgelux/Philips/Osram/San’an | |||
Lumen output | 12000lm-19000lm | 18000lm-28500lm | 24000lm-38000lm | 36000lm-57000lm |
CRI | Ra>70 | |||
CCT | 5000K standard,3000K-6000K available upon request | |||
Luminaire efficacy | 120lm/w - 190lm/w | |||
Power consumption (W) | 100W | 150W | 200W | 300W |
Operating frequency | 50/60Hz | |||
Operating voltage range | 100-240V AC | |||
Power factor | >0.9/240VAC at full load | |||
Maximum current | 0.5A | 0.75A | 1A | 1.4A |
Driver type | Moso/Meanwell/Inventronics | |||
Driver efficiency | >90% | |||
IP rating | IP65 | |||
Impact rating | IK08 | |||
Weight | / | / | / | / |
Ambient temperature range | -40℃ to +50℃ | |||
Material Composition (body) | Die-cast aluminium | |||
Material Composition (heat sink) | Anodized aluminium | |||
Expected Lifespan | >100,000 hours @L70 | |||
Controls -Optional | Photoelectric(PE)cell 24VDC driver | |||
Accessories | Pole mounted adaptor | |||
Warranty* | 5years | |||
Dimensions(mm) | 610*350*100mm | 695*350*100mm | 775*350*78.5mm | 855*350*100mm |
Data subject to change without notice
Dialux simulation available to meet end customer's needs
POWER | POLE HRIGHT | ROAD WIDTH | POLE DISTANCE | EAV | EMAX | UO |
30W | 6M | 5M | 18M | 18 | 35 | 0.371 |
40W | 7M | 5M | 21M | 20 | 38 | 0.416 |
50W | 8M | 5M | 24M | 20 | 37 | 0.458 |
60W | 9M | 5M | 27M | 20 | 34 | 0.493 |
Parameters can be adjusted according to specific requirements from end customer | ||||||

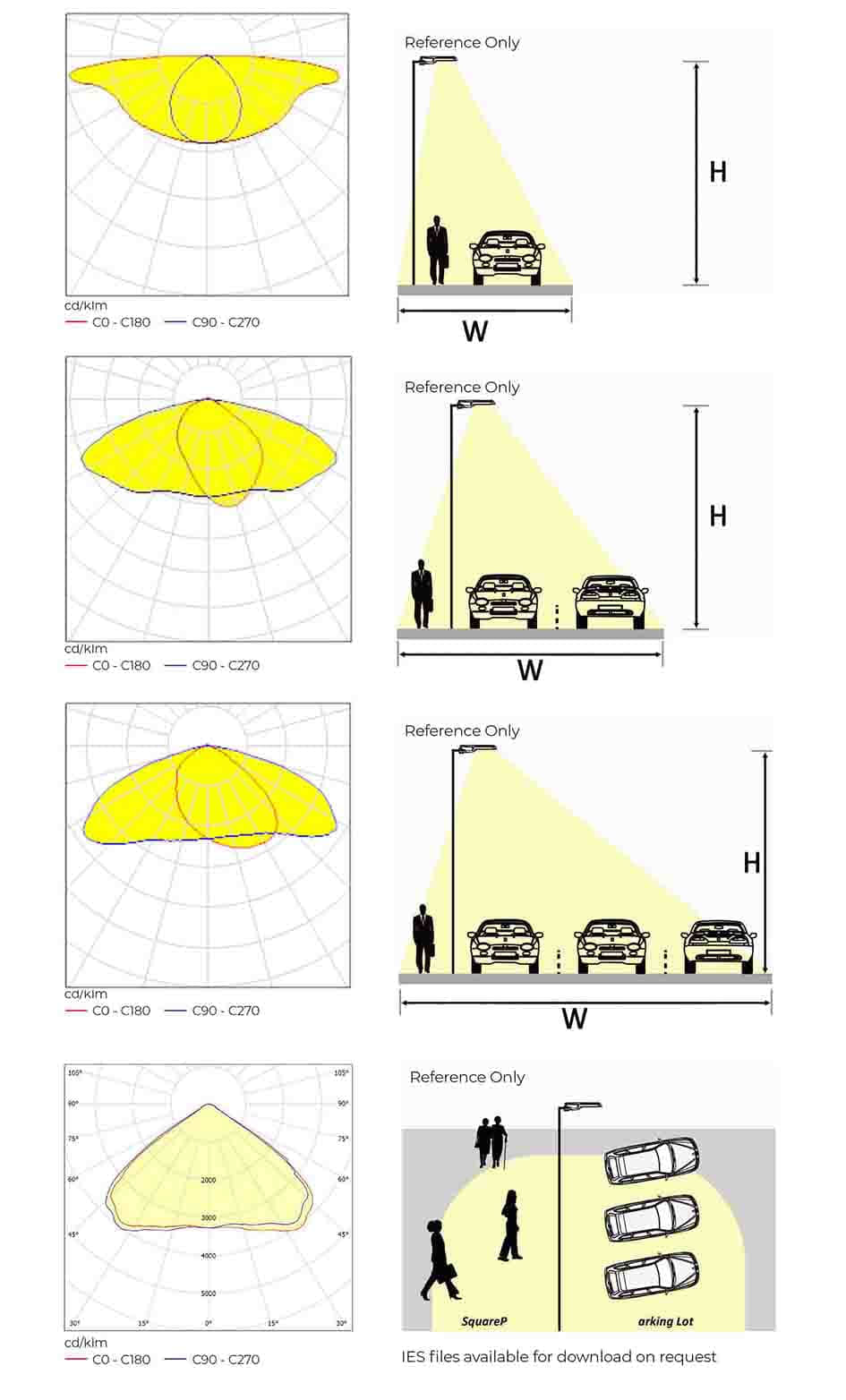

>> LED Distribution Diagram
Type I
Application
Single Driveway| Walkway/ Cycleway| Branch Roads
IES Classification: Type I - short,Medium,long
W≤1*H
Type II
Application
Two Driveway | Driveway Entrance | Urban Main Roads
IES Classification: Type II - short,Medium,long
1*H＜W≤1.75*H
Type III
Application
Three Driveway | Highway | Parking Lot/Area
IES Classification: Type III - short,Medium,long
1.75*H＜W≤2.75*H
Type VS
Application
Parking Lot | Square | Area
IES Classification: Type VS - short,Medium,long
Diameter≤1*H
>> Product Applications
1. Streets and highways
In order to keep drivers safe and visible on the road, it is crucial to have proper lighting on streets and highways. This lighting should provide adequate brightness, measured in lux, with uniformity to prevent glare and dark spots. Additionally, it should have good color rendering to accurately show object colors and energy-efficient fixtures to save on electricity costs.
2. Highway
Highway lighting plays a vital role for ensuring the safety of drivers in the high speed car at night.thus, it serves much broader purpose compared to street lighting in cities. Firstly, its brightness requirement is higher, secondly, its covering area need to be bigger, lastly, it should be free of glare and have uniform lighting performance.
3. Main road in city
Such roads are usually full of crowded people even at the late night, to avoid car accidents, the lighting on the road should keep working at high power for the whole night,meanwhile, main roads in the city are having limited space for poles installing on two sides, which requests lighting installed to have a wider covering area. For such cases, All in two solar street lights are recommended from Dison group.

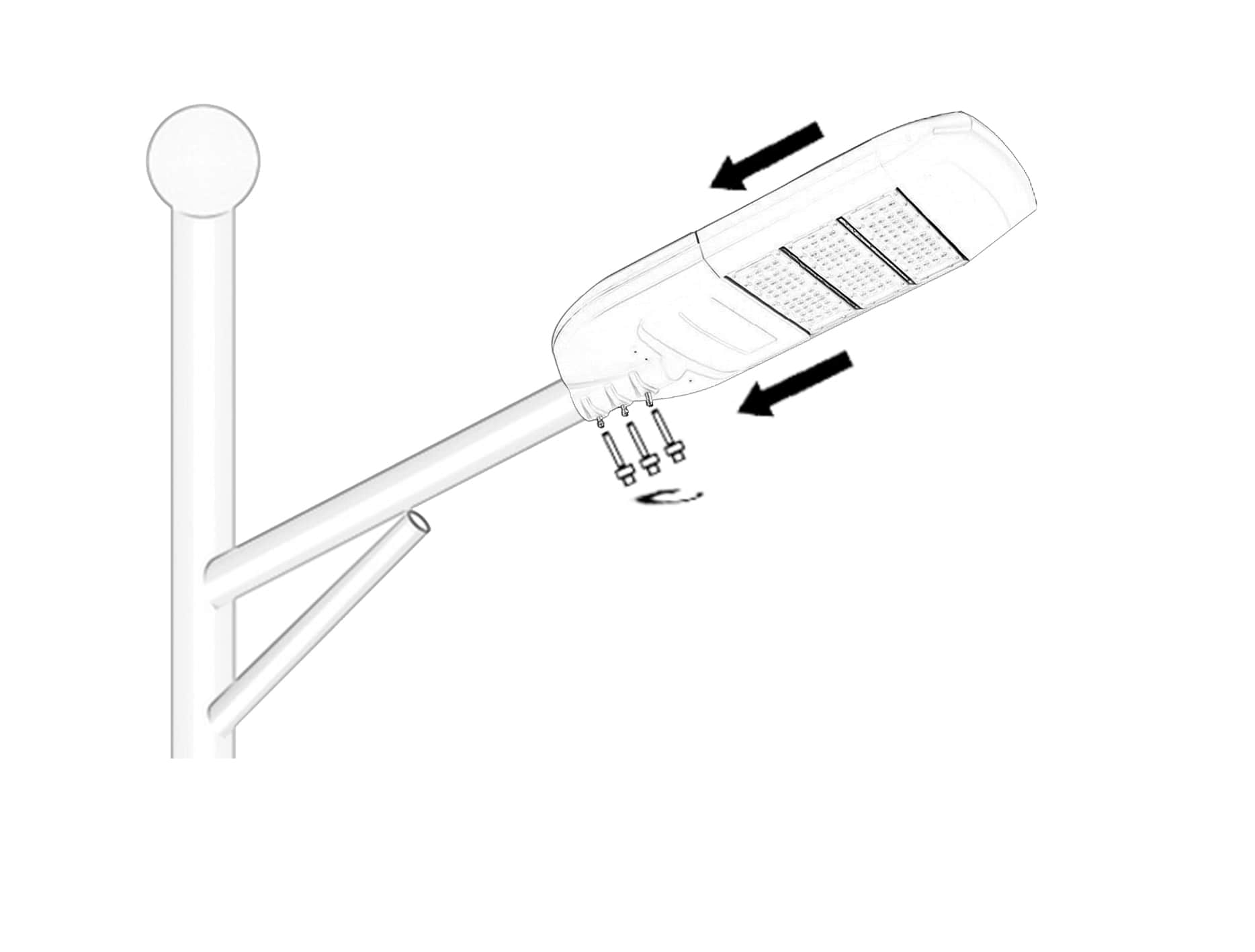

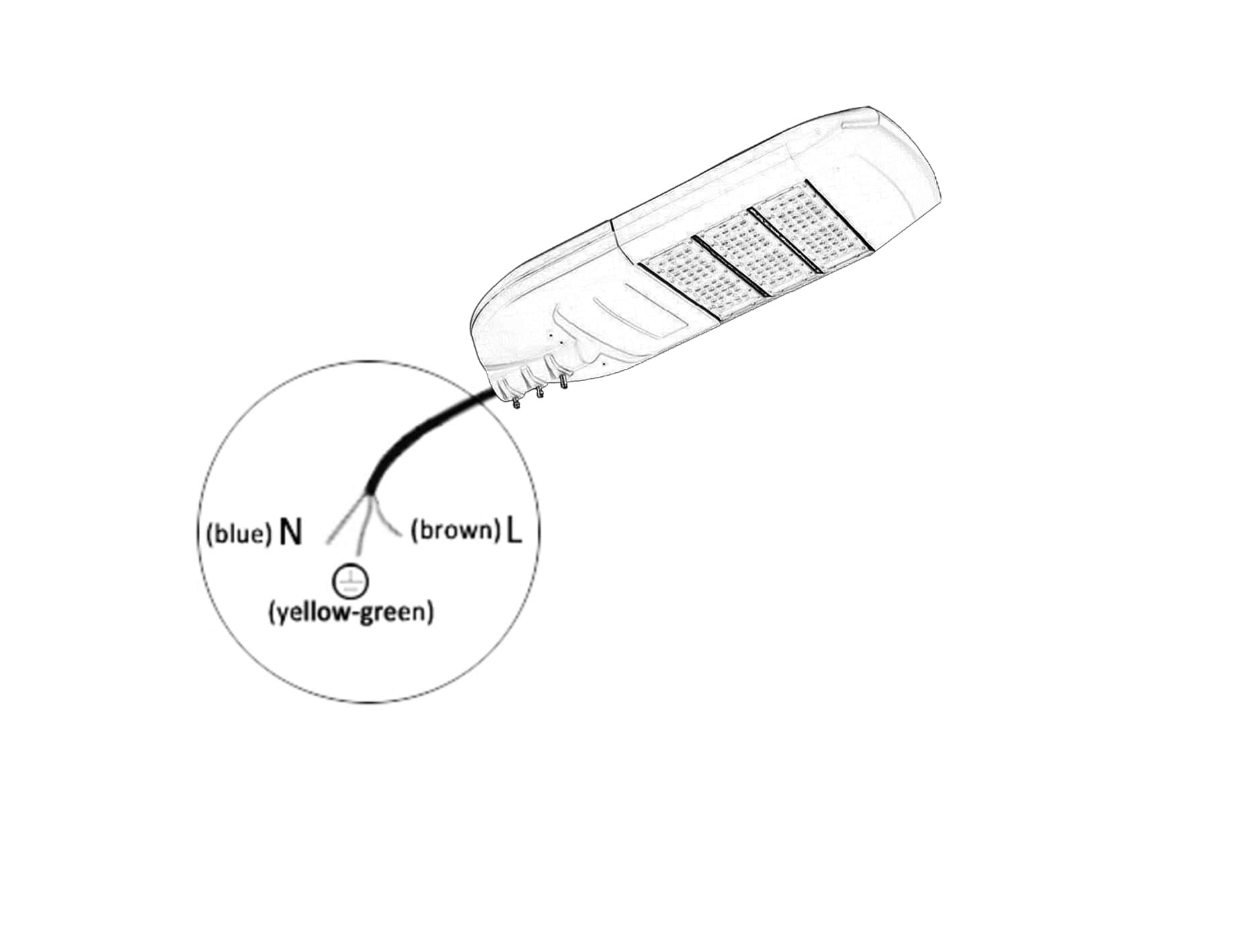

>> Product installation Guide
