LED04
DS
DS-LED04
>> Product Specifications
Model No. | DS-LED04-100W | DS-LED04-150W | DS-LED04-200W | DS-LED04-300W |
Light source | Cree/Bridgelux/Philips/Osram/San’an | |||
Lumen output | 12000lm-19000lm | 18000lm-28500lm | 24000lm-38000lm | 36000lm-57000lm |
CRI | Ra>70 | |||
CCT | 5000K standard,3000K-6000K available upon request | |||
Luminaire efficacy | 120lm/w - 190lm/w | |||
Power consumption (W) | 100W | 150W | 200W | 300W |
Operating frequency | 50/60Hz | |||
Operating voltage range | 100-240V AC | |||
Power factor | >0.9/240VAC at full load | |||
Maximum current | 0.5A | 0.75A | 1A | 1.4A |
Driver type | Moso/Meanwell/Inventronics | |||
Driver efficiency | >90% | |||
IP rating | IP65 | |||
Impact rating | IK08 | |||
Weight | / | / | / | / |
Ambient temperature range | -40℃ to +50℃ | |||
Material Composition (body) | Die-cast aluminium | |||
Material Composition (heat sink) | Anodized aluminium | |||
Expected Lifespan | >100,000 hours @L70 | |||
Controls -Optional | Photoelectric(PE)cell 24VDC driver | |||
Accessories | Pole mounted adaptor | |||
Warranty* | 5years | |||
Dimensions(mm) | 650*350*135mm | 730*350*135mm | 810*350*135mm | 890*350*135mm |
Data subject to change without notice
DIALUX SIMULATION TO SEE ACTUAL PERFORMANCE
POWER | POLE HRIGHT | ROAD WIDTH | POLE DISTANCE | EAV | EMAX | UO |
30W | 6M | 5M | 18M | 18 | 35 | 0.371 |
40W | 7M | 5M | 21M | 20 | 38 | 0.416 |
50W | 8M | 5M | 24M | 20 | 37 | 0.458 |
60W | 9M | 5M | 27M | 20 | 34 | 0.493 |
Parameters can be adjusted according to specific requirements from end customer | ||||||

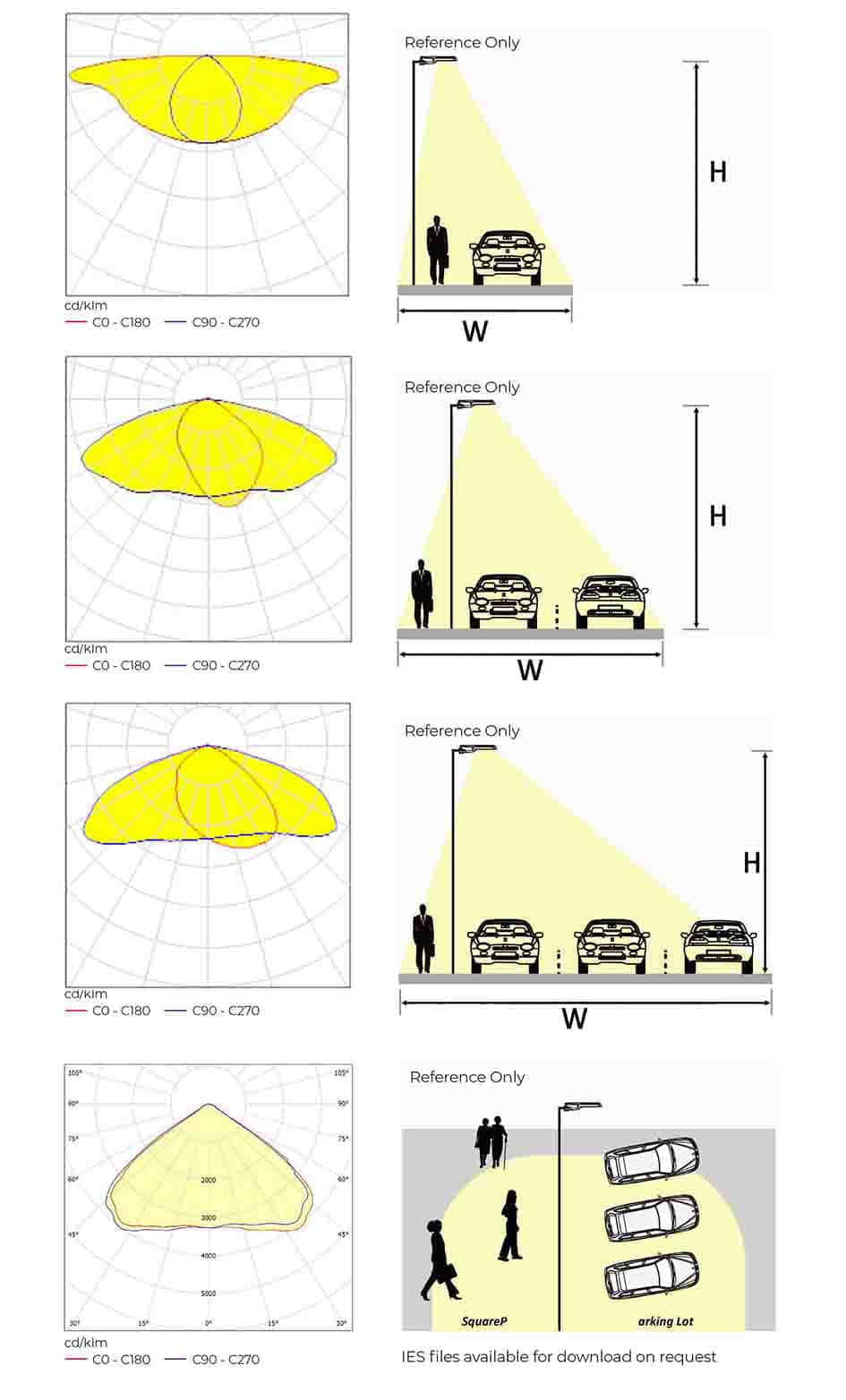

>> LED Distribution Diagram
Type I
Application
Single Driveway| Walkway/ Cycleway| Branch Roads
IES Classification: Type I - short,Medium,long
W≤1*H
Type II
Application
Two Driveway | Driveway Entrance | Urban Main Roads
IES Classification: Type II - short,Medium,long
1*H＜W≤1.75*H
Type III
Application
Three Driveway | Highway | Parking Lot/Area
IES Classification: Type III - short,Medium,long
1.75*H＜W≤2.75*H
Type VS
Application
Parking Lot | Square | Area
IES Classification: Type VS - short,Medium,long
Diameter≤1*H

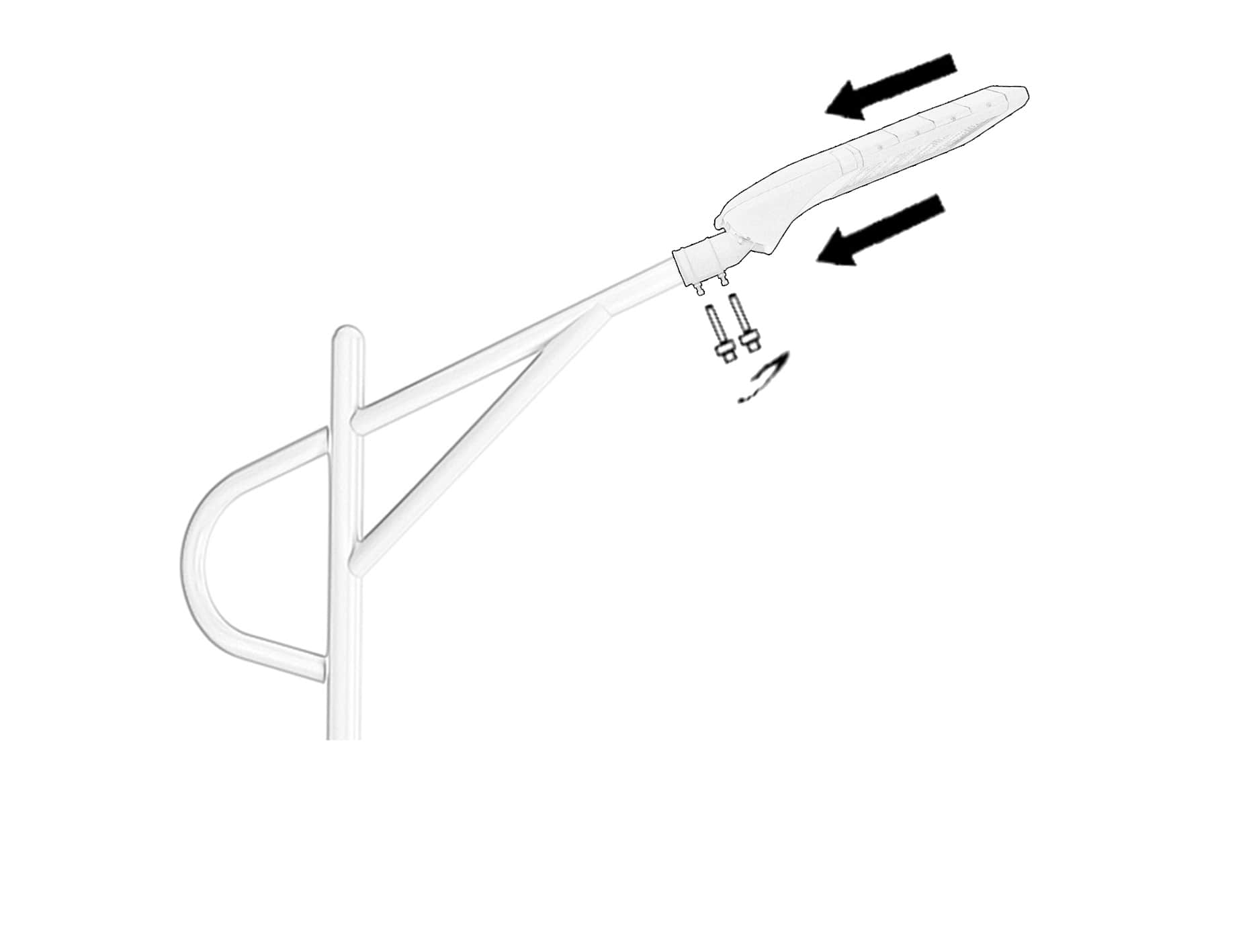

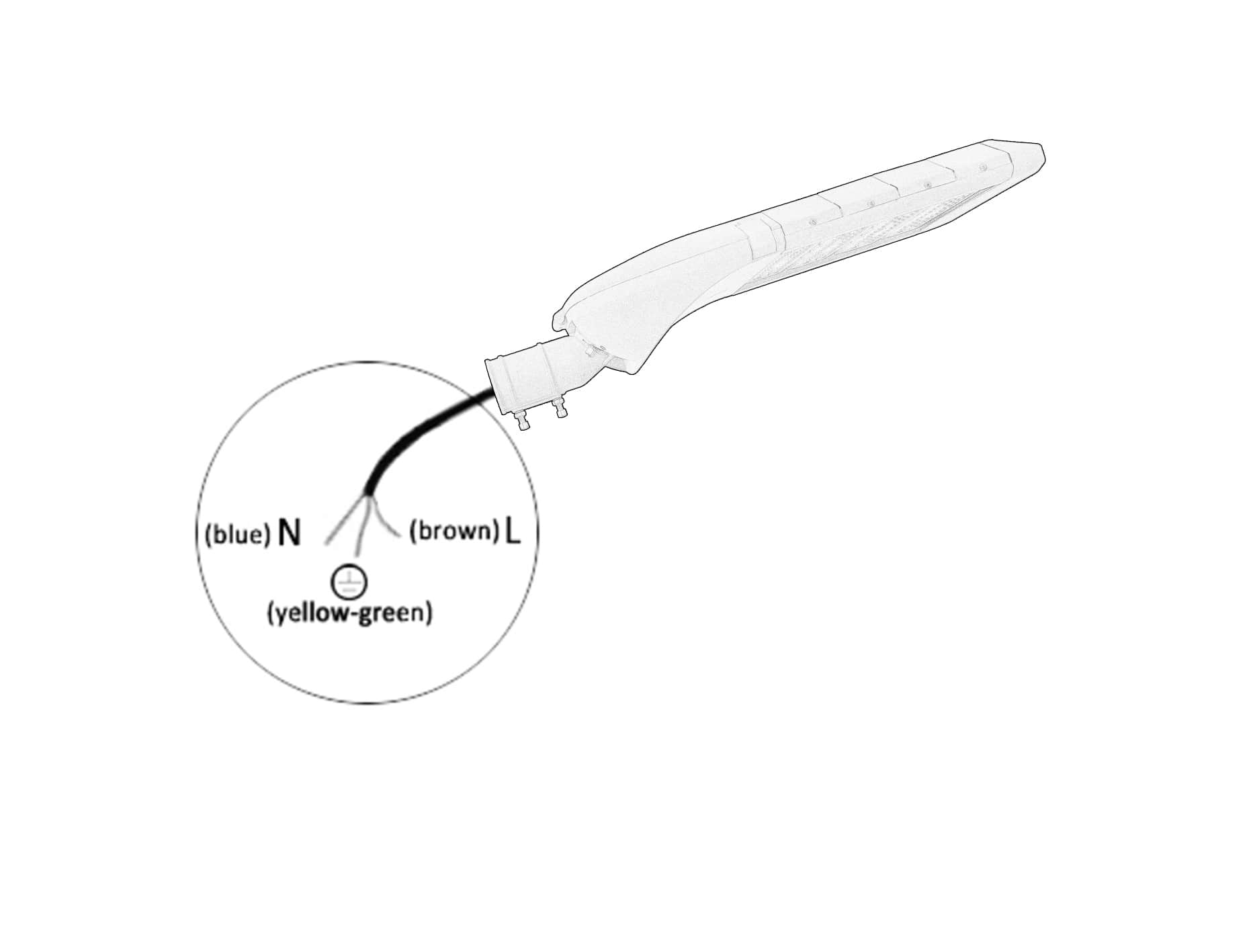

>> Product installation Guide
Factory Overview
>> Product Advantages
| HIGH EFFICIENCY CHIPS Internationally renowned brands of chips, photoelectric conversion rate as high as 80%-90% or more, each watt can produce 120-190LM or more; The luminescence is uniform and the wavelength is stable. |
| EXCELLENT HEAT DISSIPATION Die-cast aluminum shell, aluminum stripe heat dissipation design, improve heat dissipation performance, better heat dissipation effect, effectively extend the service life of the LED chip, up to 100,000 hours or more. |
| UNIFORMED DISTRIBUTION LED beads are evenly distributed according to geometric patterns, so that the light is evenly projected to the ground, reducing shadows and dark areas, and achieving good lighting effects. |
| ELEGANT DESIGN The art of integrating aesthetics, craft and function, with its elegant lighting effect, enhances the beauty of the city and achieves the perfect combination of function and aesthetics. |
| ANTI-RUST TREATMENT High quality aluminum alloy, the use of fine anodic oxidation process, improve rust resistance, enhance wear resistance; The hardware of the key connection parts adopts multi-layer galvanizing process to ensure stability and durability. |

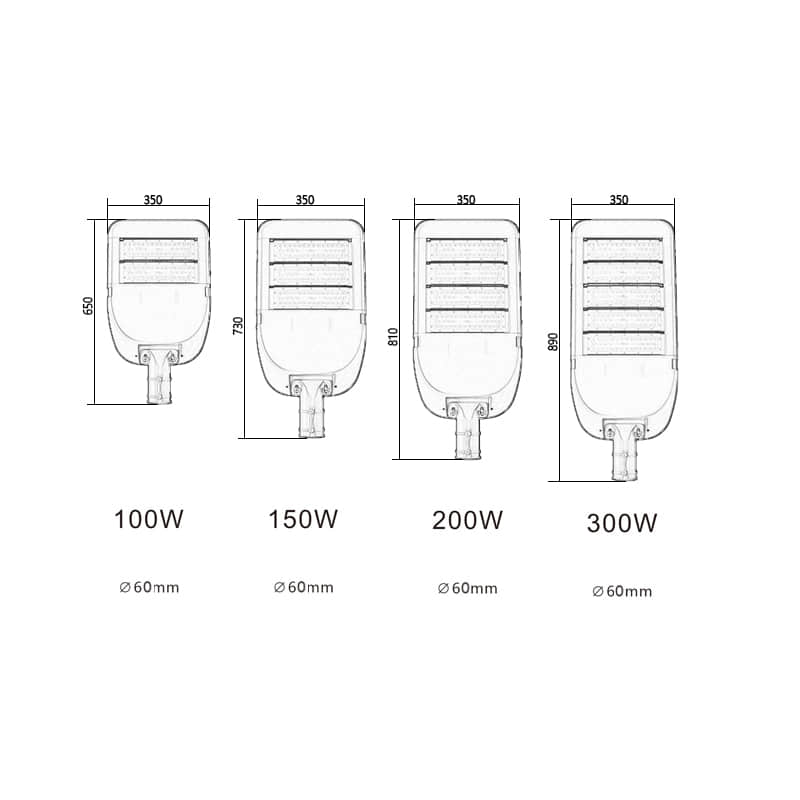

Product Dimensions
>> Product Applications
1. Urban road
The urban main road traffic flow is large, the speed is fast, the need for high brightness and uniform lighting to ensure traffic safety and driving sight distance. LED street lights have good light distribution performance, can provide enough brightness, and its high color rendering also helps drivers clearly distinguish road conditions and traffic signs.
2. Squares and parks
As a public activity space, it is necessary to create a bright and comfortable lighting environment. The low color temperature and high color performance of LED street lights are enough to better restore the environmental color and show the beauty of the natural landscape. At the same time, its anti-glare design can also avoid visual discomfort to people.
3.Industry zone
Roads in industrial parks are usually wide and require high brightness lighting. LED street lights can meet this demand, while its long life and low maintenance costs are also suitable for industrial park requirements for lamp reliability, reducing the maintenance workload and cost caused by lamp failure.
