DS-SWS4 Factory direct supply of solar wind LED street lights, wind and solar complementary energy-saving outdoor road lighting street lights

DS-SWS4 Factory direct supply of solar wind LED street lights, wind and solar complementary energy-saving outdoor road lighting street lights

DS-SWS4 solar wind LED street light uses solar panels to convert solar energy into electricity, and wind turbines to convert wind energy into electricity. The electricity is stored in lithium batteries through controllers, and finally provides power for LED lamps to achieve lighting functions.
LED lamps emit bright and soft light with the excellent characteristics of high light efficiency, low energy consumption and long life, illuminating the way for pedestrians and guiding the direction for vehicles.

Quantity:
Availability:





Inquire Add to Basket

Model:
SWS4
Brand:
DS
Code:
DS-SWS4

>> Product Advantages

ENVIRONMENT FRIENDLY

It completely relies on natural energy to meet its own electricity needs, reduces the consumption of non-renewable energy, and does not need to lay complex cable lines to transmit electricity, which greatly reduces the excavation and occupation of land, and reduces the damage to soil structure and vegetation; it promotes the sustainable use of energy and the maintenance of ecological balance.

RELIABLE

Made of high-strength steel or aluminum alloy, it has good mechanical strength and corrosion resistance, with a protection level of IP65 or above. The high-quality main components and the adjustment function of the intelligent controller improve the stability of the entire street light system.

COST SAVING

The utilization of renewable resources eliminates the need to obtain electricity from the power grid, thus completely avoiding long-term electricity bills; the main components of wind-solar complementary LED street lights have a long service life, reducing the frequency of replacement and low maintenance costs.

EASY INSTALLATION

Each component usually adopts a modular design, and the installation process is simple and clear, without the need for complicated cable laying and grid access. After the installation is completed, the installer can complete the debugging of the street light in a short time through the buttons or interfaces on the controller, so that the street light can be put into use quickly.

BEAUTIFUL APPEARANCE

The appearance of wind-solar hybrid LED street lights is simple and elegant, focusing on the smoothness of lines and the use of geometric shapes. The lamp poles are usually straight cylinders or cuboids, without excessive decoration and complex shapes. The installation of solar panels and wind turbines is also relatively simple, giving people a simple and bright feeling as a whole.

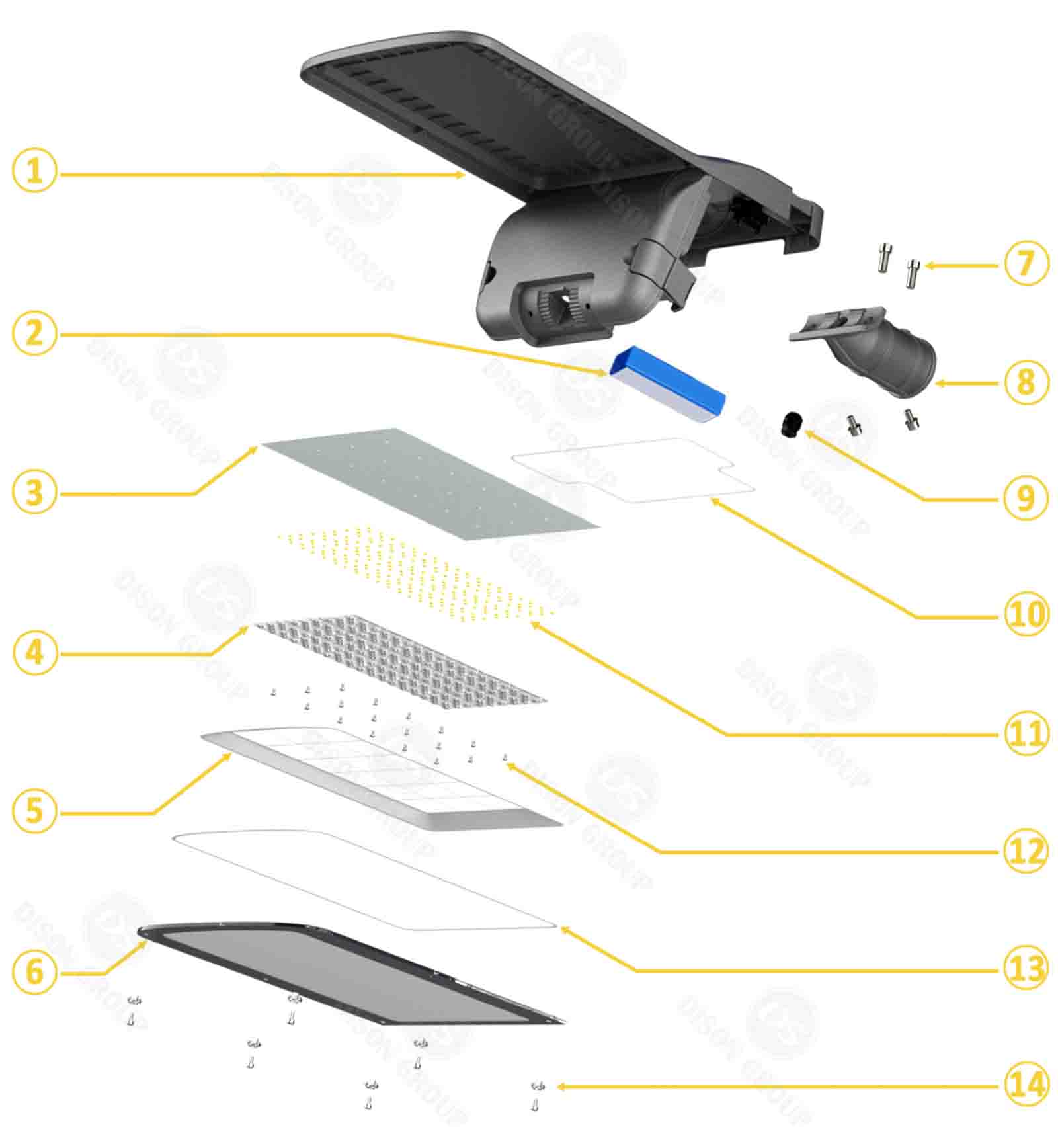

>> Explosion View Of Street Lamp

SWS4

Components of solar street lamp
NO.	Item name	NO.	Item name
1	lamp fixture main body	8	Socket
2	LifePo4 lithium battery	9	waterproof connector
3	PCB board	10	waterproof ring
4	optical lens	11	LED chips
5	Reflector	12	Screws for optical lens
6	Lamp cover	13	waterproof ring
7	Screw for Socket	14	Screw for lamp cover

>> Technical Parameters

Model	DS-SWS4 20W-50W SOLAR WIND STREET LIGHT
LED LIGHT	108pcs 3030 LED chips,≥130lm/w, CRI≥70,3000-6500K customizable
Solar panel	customized
Lithium battery	customized
Solar controller（PWM/MPPT）	10-20A
Product size	53827090mm
Suggested install height	4-7M
Lighting mode	10-12hours per day/ can be customized
IP rate/IK	IP66/IK08
Working temp	-25℃ to 65℃
Backups	＞3days
Lifespan	＞10 years
Warranty period	＞3 years
Motion sensor	Optional
CCTV camera	Optional
All components can be adjusted according to customer's needs

>> Product Applications

1. Urban roads

Urban main roads usually have large traffic and pedestrian flows, which requires high reliability of street lights. The energy complementary characteristics of the wind-solar hybrid system can ensure that street lights work normally under different weather conditions. At the same time, the high brightness and good lighting effect of LED lamps can effectively illuminate the road and improve the safety of driving and pedestrians.

2. Highways and bridges

Some sections of highways and bridges are far away from the city power grid, and the cost of laying cables is high. Wind-solar complementary street lights can provide temporary or long-term lighting solutions.

3.Mountainous and highland areas

Mountainous and plateau areas have complex terrains, and some places are difficult to reach with power grids. However, these areas often have good wind and solar energy resources. Wind-solar complementary LED street lights can flexibly choose installation locations based on local terrain and resource distribution to achieve efficient use of energy.

>> Product Operate Guide

The solar wind street light is like All in Two solar street light which is a semi integrated solution that requires no wiring. Simply plug it in and secure it to the pole. The light will turn on at night, operate based on your programmed schedule, and recharge the lithium battery during the day automatically.

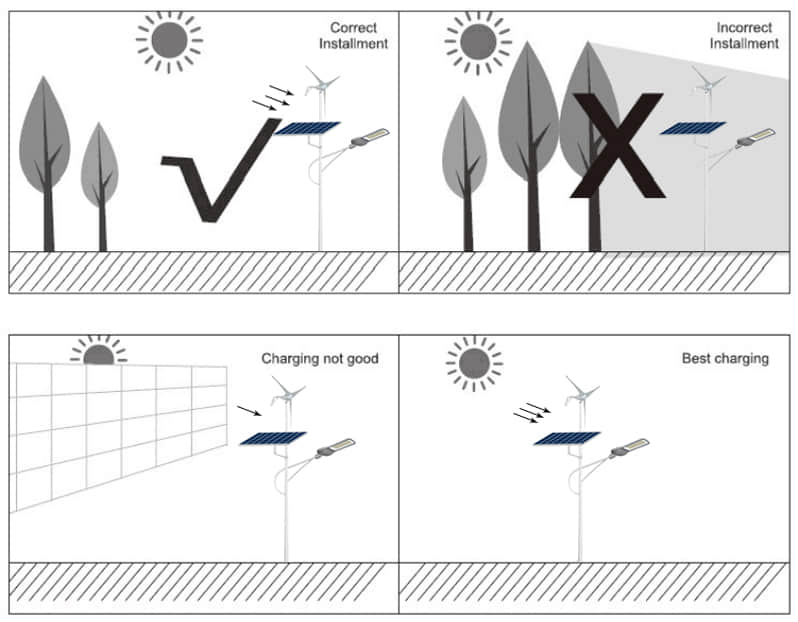

For optimal performance, it is advised to place the solar panels in a horizontal position where they can receive ample sunlight and direct exposure to the sun. It is important to make sure that there are no obstructions within a 120° range of the panels.
