>> Product Advantages
| EASY INSTALLATION Easy installation has realized thanks to its unique integrated design which have already been pre-wired at our workshop,meanwhile, long lifespan of solar panel(≥25years), LED light source(≥10years) and battery(≥10years) makes maintenance unnecessary for at least 10 years. |
| LED CHIPS FROM TOP 5 MANUFACTURERS Making use of high brightness LED chips from reputable LED chips manufacturers like Lumileds, Cree, and San'an, the chips efficiency can achieve more than 150LM/W. The lighting efficiency of whole outdoor solar garden lamp can reach 100LM/W for 3030 LED chips and 130LM/W for 5050 LED chips after equipping with imported optical lenses with a transparency of at least 90%. |
| FLEXIBLE COLLOCATION The lighting system will work automatically once installed, and Motion sensor and CCTV camera are optional for this solar powered LED light for street for energy saving and safety consideration. |
| UNIQUE LIGHTING DISTRIBUTION Covering area is 20% more compared with normal solar street light by using Patented bat-wing lighting design ensuring not only consistent and even light distribution,but also enough brightness in central area, at the same time, A variety of lighting distribution options are available to meet different customer needs. |
| WIDE APPLICATION COUNTRIES This lamp is a suitable solar pedestrian light to work perfectly no matter in gulf countries with 5.5 hours of valid sunshine or in north Europe with 2.5 hours of valid sunshine. |
>> Technical Parameters
Model | 30W ALL IN ONE SOLAR GARDEN LIGHT | 40W ALL IN ONE SOLAR GARDEN LIGHT | 50W ALL IN ONE SOLAR GARDEN LIGHT |
LED LIGHT | 5 LED modules, ≥100lm/w, CRI≥70, 3000-6000K customizable | 5 LED modules, ≥100lm/w, CRI≥70, 3000-6000K customizable | 5 LED modules, ≥100lm/w, CRI≥70, 3000-6000K customizable |
Solar panel | 30W/5V,mono crystalline,≥16% efficiency | 40W/5V,mono crystalline,≥16% efficiency | 50W/5V,mono crystalline,≥16% efficiency |
Lithium battery | 128WH,lifepo4 lithium battery | 160WH,lifepo4 lithium battery | 192WH,lifepo4 lithium battery |
Solar controller（PWM/MPPT） | 10A | 10A | 10A |
Product size | 670*670*55mm | 670*670*55mm | 670*670*55mm |
Suggested install height | 3-6 Meters | 4-6 Meters | 4-7 Meters |
Lighting mode | 10-12hours per day/ can be customized | ||
IP rate/IK | IP66/IK08 | ||
Working temp | -25℃ to 65℃ | ||
Backups | ＞3days | ||
Lifespan | ＞10 years | ||
Warranty period | ＞3 years | ||
Motion sensor | Optional | ||
>> Product Applications
1. Village road lighting
In small rural villages, road lighting requirements there are different compared to lights in cities. Urban areas require street lights working for long periods at high brightness due to heavy traffic flow. However, village roads are narrower with less traffic, so full power lights are not always necessary. Many remote villages are lack of fundamental infrastructure and access to the power grid, making it much expensive to lay underground cables for scattered lights. The Dison AIO8 solar powered LED garden light becomes an ideal solution for lighting in these areas.
2. Factory/School/Park/Jetty/Parking lots/Perimeter fence
Such using environment are having one common feature that they install the lights primarily for safety consideration, and qty of solar lights needed is not too many, so laying cables to power grid is not economic for the end user. Stand alone solar light with motion sensor or CCTV camera from Dison Group becomes the perfect choice.
3. Passways
Properly lighting up passways can ensure the safety of residents during their way home after dark, or doing small business activities for them. Simple installation of solar LED park light at regular intervals can perfectly make you satisfied with the lighting performance.

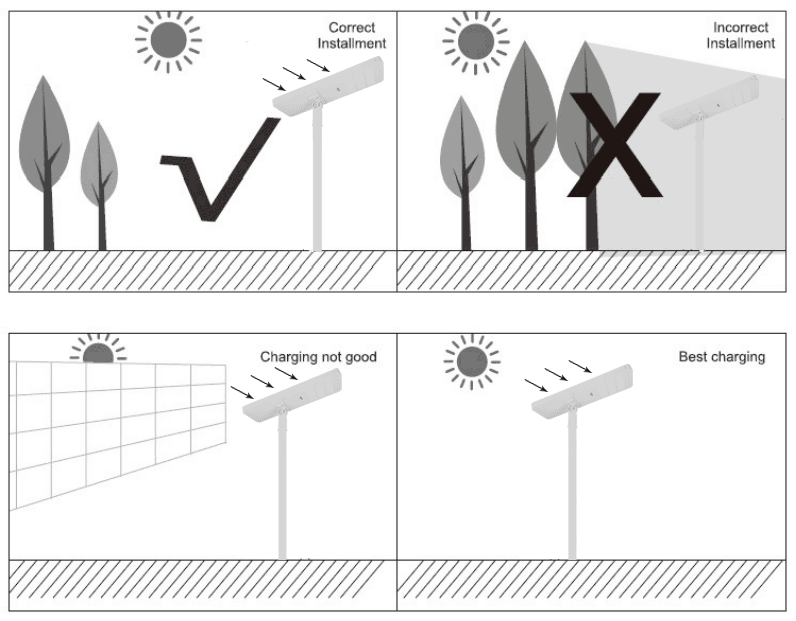

>> Product Operate Guide
