>> Product Advantages
| ENVIRONMENT FRIENDLY Wind-solar complementary LED street lights use renewable solar and wind energy in nature as energy, do not consume any non-renewable energy, do not emit polluting gases into the atmosphere, and reduce pollution emissions to zero. |
| RELIABLE When wind and sun work together, solar energy and wind energy complement each other to achieve all-weather power generation, which is more economical, scientific and practical than using wind turbines and solar energy alone. |
| COST SAVING The wind-solar complementary LED street light system operates completely independently, reducing the cost of laying power supply lines, saving money, and does not consume energy or emit pollutants. All parts can be recycled and reused. It has low maintenance costs and a long service life! It conforms to the current trend of energy conservation and environmental protection! |
| EASY INSTALLATION There is no need to lay cables, each street lamp is an individual unit, and there is no need to build a large number of power supply facilities, which saves manpower and financial resources. The construction is simple, the construction period is short, and the distributed independent power generation system ensures that individual damage will not affect the normal operation of other street lamps, making maintenance more convenient. |

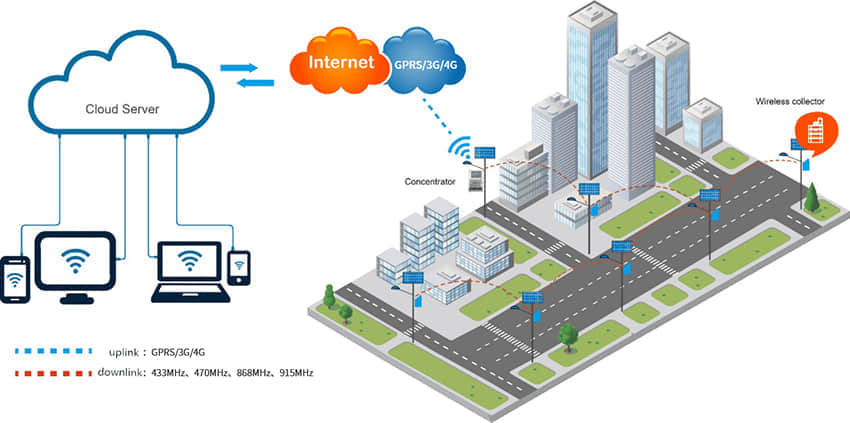

| INTELLIGENT CONTROL According to environmental conditions and actual needs, the operating status of street lamps can be automatically and accurately adjusted to achieve efficient energy saving and stable lighting; it can make full use of solar and wind energy resources, extend the service life of equipment, reduce maintenance costs, and improve the reliability and economy of the entire street lamp system. |

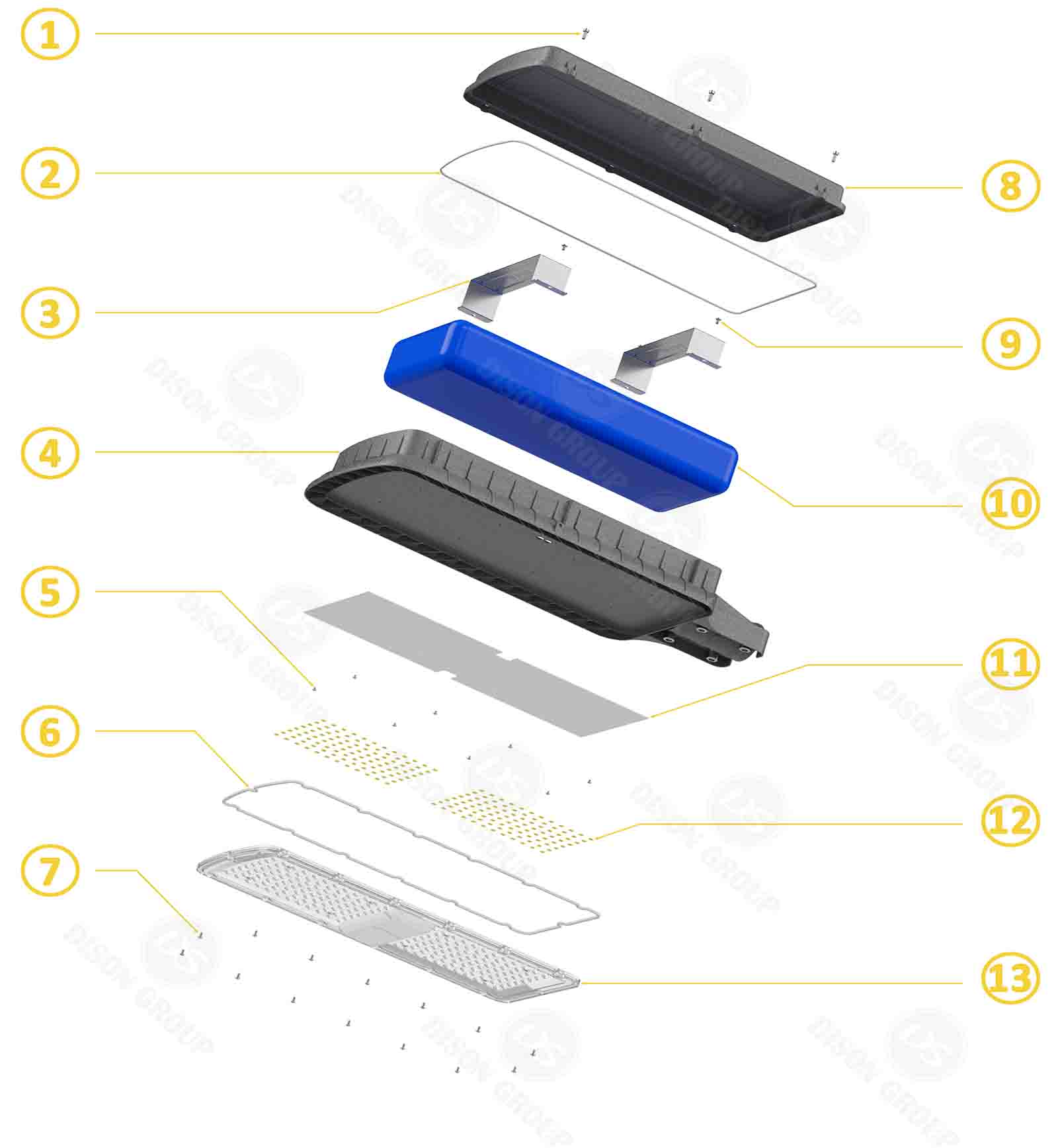

>> Explosion View Of Street Lamp
Components of solar street lamp | |||
NO. | Item name | NO. | Item name |
1 | Screw for lamp cover | 8 | lamp cover |
2 | waterproof ring | 9 | Screw for battery clamp |
3 | battery clamp | 10 | LifePo4 lithium battery |
4 | lamp fixture main body | 11 | PCB board |
5 | Screws for PCB board | 12 | LED chips |
6 | waterproof ring | 13 | optical lens |
7 | Screws for optical lens | ||
>> Technical Parameters
Model | DS-SWS2 100W-300W SOLAR WIND STREET LIGHT |
LED LIGHT | 192pcs 3030 LED chips,≥130lm/w, CRI≥70,3000-6500K customizable |
Solar panel | customized |
Lithium battery | customized |
Solar controller（PWM/MPPT） | 10-20A |
Product size | 650*260*118mm |
Suggested install height | 7-12M |
Lighting mode | 10-12hours per day/ can be customized |
IP rate/IK | IP66/IK08 |
Working temp | -25℃ to 65℃ |
Backups | ＞3days |
Lifespan | ＞10 years |
Warranty period | ＞3 years |
Motion sensor | Optional |
CCTV camera | Optional |
All components can be adjusted according to customer's needs | |
>> Product Applications
1. Highway service areas and toll booths
Highway service areas and toll stations generally have large areas with enough space to install wind-solar hybrid systems. Moreover, the lighting demand in these places is relatively stable, and intelligently controlled wind-solar hybrid street lights can adjust the lighting brightness according to the needs of different time periods to achieve energy saving.
2. City parks and squares
The wind-solar complementary street lamp has a beautiful shape, and the windmill-shaped wind turbine and solar panel can be combined with the natural landscape of parks and squares to become a landscape element. It can not only provide lighting, but also add an environmental protection and technological atmosphere, and enhance the image of the city.
3. Coastal roads and islands
Coastal roads and islands usually have abundant wind energy resources, and in some islands, the power supply from the grid is unstable or costly. Wind-solar hybrid street lamps can make full use of wind and solar energy to provide lighting independently and stably.

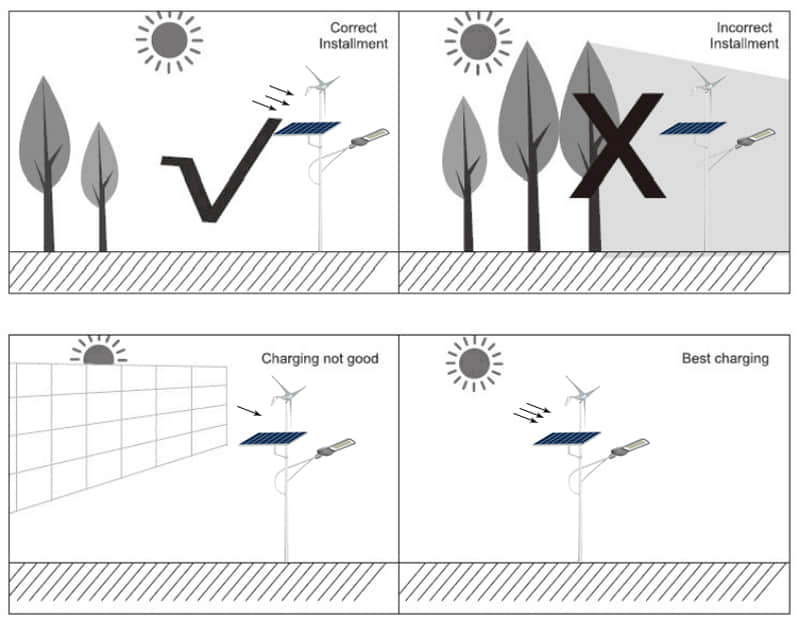

>> Product Operate Guide
