>> Product Advantages
| STRONG CORROSION RESISTANCE Q235 steel itself has a certain atmospheric corrosion resistance, and the steel can be well combined with various surface treatment processes, such as hot-dip galvanizing, spraying, etc. After surface treatment, the corrosion resistance of Q235 steel street light poles can be greatly improved, and can be used for a long time in harsh environments. |
| GOOD ECONOMICAL The performance and price of steel street light poles have a high cost-effectiveness while meeting the requirements of most street lights. The production process is mature and the market supply is sufficient, which can effectively control costs while ensuring quality. |
| HIGH PRODUCTION EFFICIENCY The processing and manufacturing process of steel parts is relatively mature, and the production equipment and processes are relatively advanced, capable of achieving large-scale and efficient production. |
| ADAPT TO MULTIPLE ENVIRONMENTS Whether in humid coastal areas or in areas with severe industrial pollution, anti-corrosion treated steel street light poles can better adapt to the environment and maintain the integrity of their performance and appearance. |
| EASY MAINTENANCE The structure of steel street light poles is relatively simple, and once a problem occurs, maintenance personnel can easily inspect and repair it. In addition, the market supply of steel is sufficient, and the parts required for maintenance are easy to obtain, so they can be replaced and repaired in time to ensure the normal operation of street lights. |

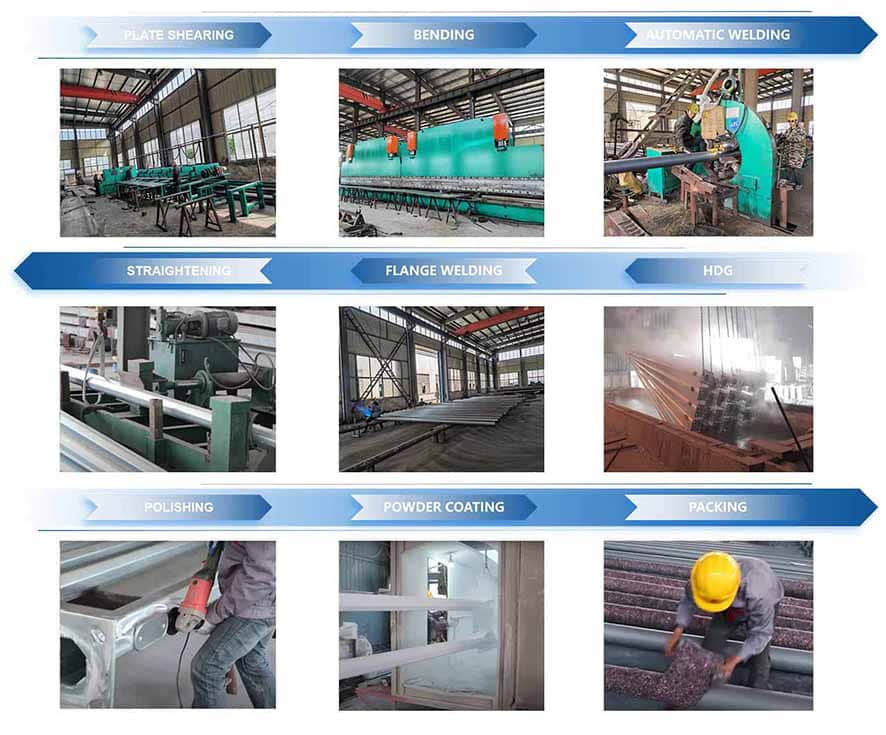

>> Product Processing

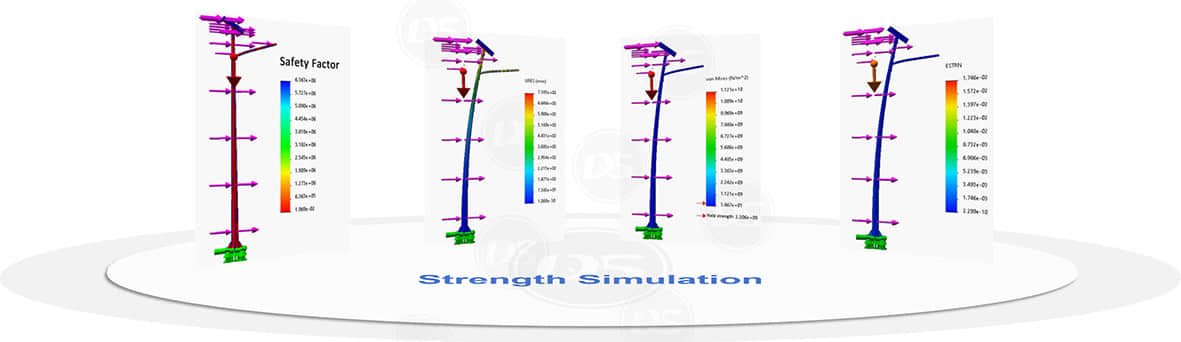

Simulation Process for LED street light pole in High Wind areas
The strength simulation process for LED street light pole typically in high wind areas involves not only creating a digital model of the structure using specialized software, but also taking into account the geometry, material properties, and support conditions of the high mast light, as well as the expected wind loads based on the site location and local climate data. By applying these wind loads to the model, engineers can simulate the behavior of the structure under different wind conditions and assess its performance.
How Is Quality Of LED street light pole Guaranteed
The use of professional equipment allows Dison Group to ensure the consistency in the manufacturing process, resulting in street lighting poles that are uniform in quality.In addition to using professional equipment, we also implement a strict quality control system to maintain the highest standards of quality in our street lighting poles. Through strict testing and inspection processes, Dison Group is able to identify and address any potential issues or defects before delivery.
>> Why Price From Other Manufacturer Is Much Cheap
Contrast of poles between Dison and some others
Recommended Technical Parameters
Height | Upper/Bottom(MM) | THK(MM) | Flange(MM) | Basic(MM) |
6M | 60/120 | 2.50 | 240*240*12 | 600MM*M18 |
7M | 70/140 | 2.75 | 260*260*12 | 700MM*M18 |
8M | 70/158 | 3.00 | 280*280*12 | 750MM*M18 |
9M | 80/185 | 3.25 | 300*300*14 | 800MM*M20 |
10M | 80/185 | 3.50 | 320*320*16 | 850MM*M22 |
11M | 80/200 | 3.50 | 350*350*18 | 950MM*M22 |
12M | 80/215 | 3.50 | 350*350*18 | 950MM*M22 |
>> Product Applications
1. Lighting pole for Urban roads and transportation hubs
Urban roads and important transportation hubs have high requirements for the stability and durability of street light poles. Q235 steel is strong in texture and can withstand various loads in special environments, ensuring the stable operation of the lighting system and ensuring traffic order and safety.
2. Lighting pole for Industrial Area
The complex internal environment of the factory and some special operating areas, such as mines, have certain requirements for the corrosion resistance and impact resistance of street light poles. After proper surface treatment, Q235 steel can better adapt to the harsh environment of mines and factories, providing reliable lighting for internal roads and work areas.
3. Lighting pole for public places
Q235 steel street light poles have good thermal processing properties and can be designed into different shapes and styles according to the landscape design and lighting requirements of the site, blending with the surrounding environment to provide a comfortable and beautiful lighting environment.
>> Product Operate Guide
• Assemble the foundation kits of lighting pole following the instruction below:
NOTE
• leave enough space to mount flange during securing inner nut.
• install the template with level meter and ensure it is leveled.
• Wrap the screws on the top side with tape to protect it from being contaminated by concrete.
