>> Product Advantages

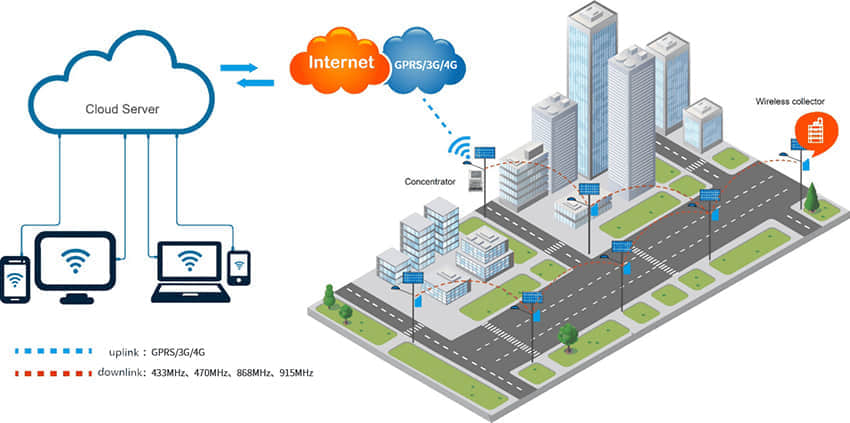

| SMART CITY INTEGRATION Various accessories are available to connect to IOT system to achieve customer's goals. |
| MAXIMUM SAVINGS By detecting movements to adjust output of lamp accordingly so that end user can fully make use of the energy consumption. |
| EASY MANAGEMENT All equipment are connected to IOT which can be remotely controlled by APP on mobile phone or computer. |
| ENVIRONMENTAL BENEFITS By reducing energy consumption and lowering carbon emissions, smart LED street lights with pole can help cities reduce their environmental impact. Additionally, the use of sensors to monitor air quality can provide valuable data for city planners looking to improve overall environmental quality. |
| BEAUTIFUL AND ELEGANT APPEARANCE Adopting simple and fashionable design style, extremely practical at reasonable cost. |
| ANTI-RUST DESIGN All accessories are processed with anti-rust treatment, extend the service lifespan of whole lamp . |

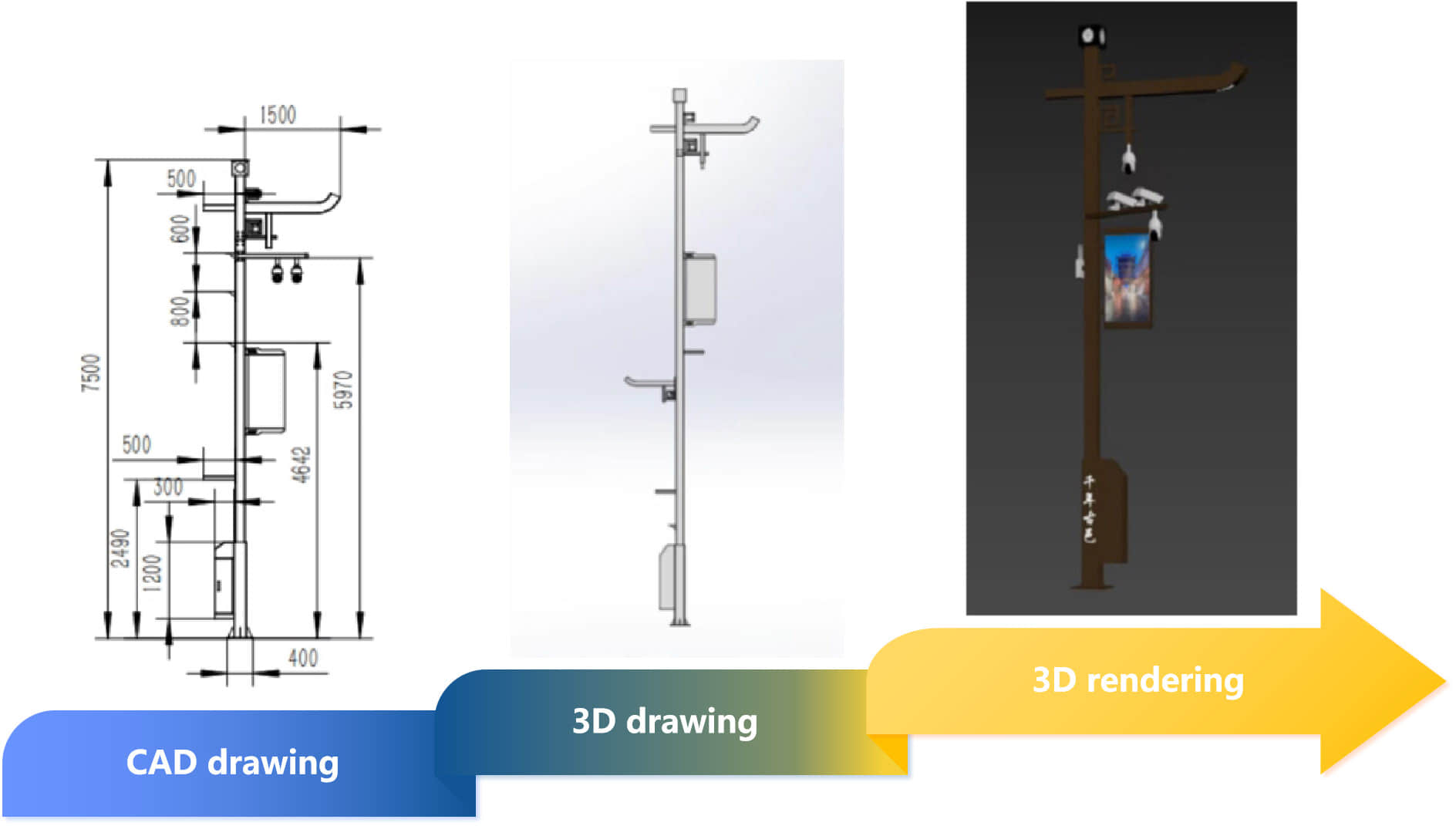

>> Product Design Process

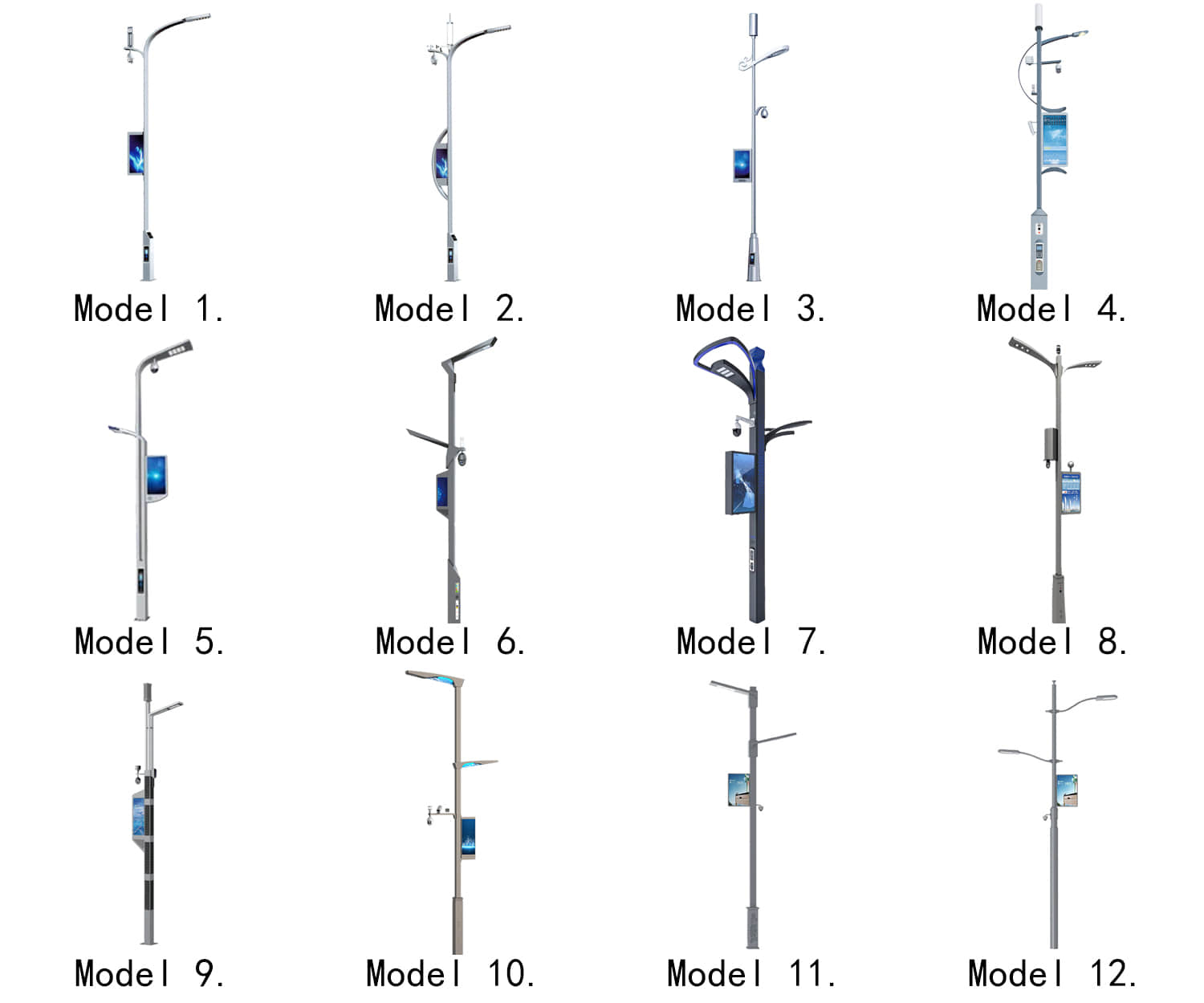

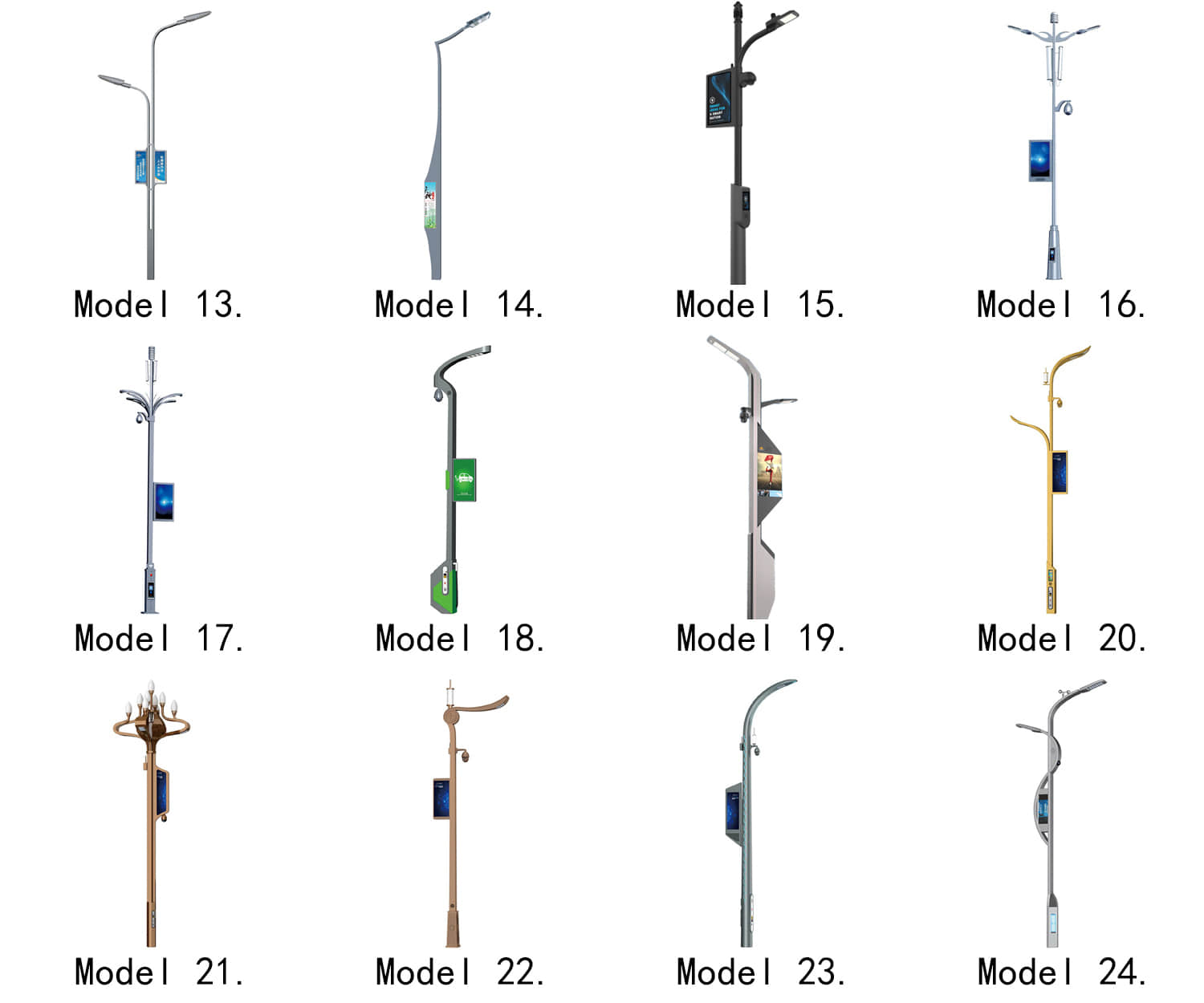

Product Modes
>> Product Specifications
Model No. | DS-SSL1-X | DS-SSL2-X | DS-SSL3-X |
Light source | Cree/Bridgelux/Philips/Osram/San’an | ||
Lumen output | 5000-57000lm | 5000-57000lm | 5000-57000lm |
CRI | Ra>70 | ||
CCT | 5000K standard,3000K-6000K available upon request | ||
Luminaire efficacy | 100-190lm/w | ||
Power consumption (W) | 50-300W | 50-300W | 50-300W |
Operating frequency | 50/60Hz | ||
Operating voltage range | 100-240V AC | ||
Power factor | >0.9/240VAC at full load | ||
Maximum current | NA | NA | NA |
Driver type | Moso/Meanwell/Inventronics | ||
Driver efficiency | >90% | ||
IP rating | IP65 | ||
Impact rating | IK10 | ||
Weight | NA | NA | NA |
Ambient temperature range | -40℃ to +50℃ | ||
Material Composition (body) | Die-cast aluminium | ||
Material Composition (heat sink) | Anodized aluminium | ||
Expected Lifespan | >100,000 hours @L70 | ||
Controls -Optional | Photoelectric(PE)cell 24VDC driver | ||
Accessories | Pole mounted adaptor | ||
Warranty* | 5years | ||
Dimensions(mm) | NA | NA | NA |
Data subject to change without notice
Dialux simulation available to meet end customer's needs
POWER | POLE HRIGHT | ROAD WIDTH | POLE DISTANCE | EAV | EMAX | UO |
30W | 6M | 5M | 18M | 18 | 35 | 0.371 |
40W | 7M | 5M | 21M | 20 | 38 | 0.416 |
50W | 8M | 5M | 24M | 20 | 37 | 0.458 |
60W | 9M | 5M | 27M | 20 | 34 | 0.493 |
Parameters can be adjusted according to specific requirements from end customer | ||||||

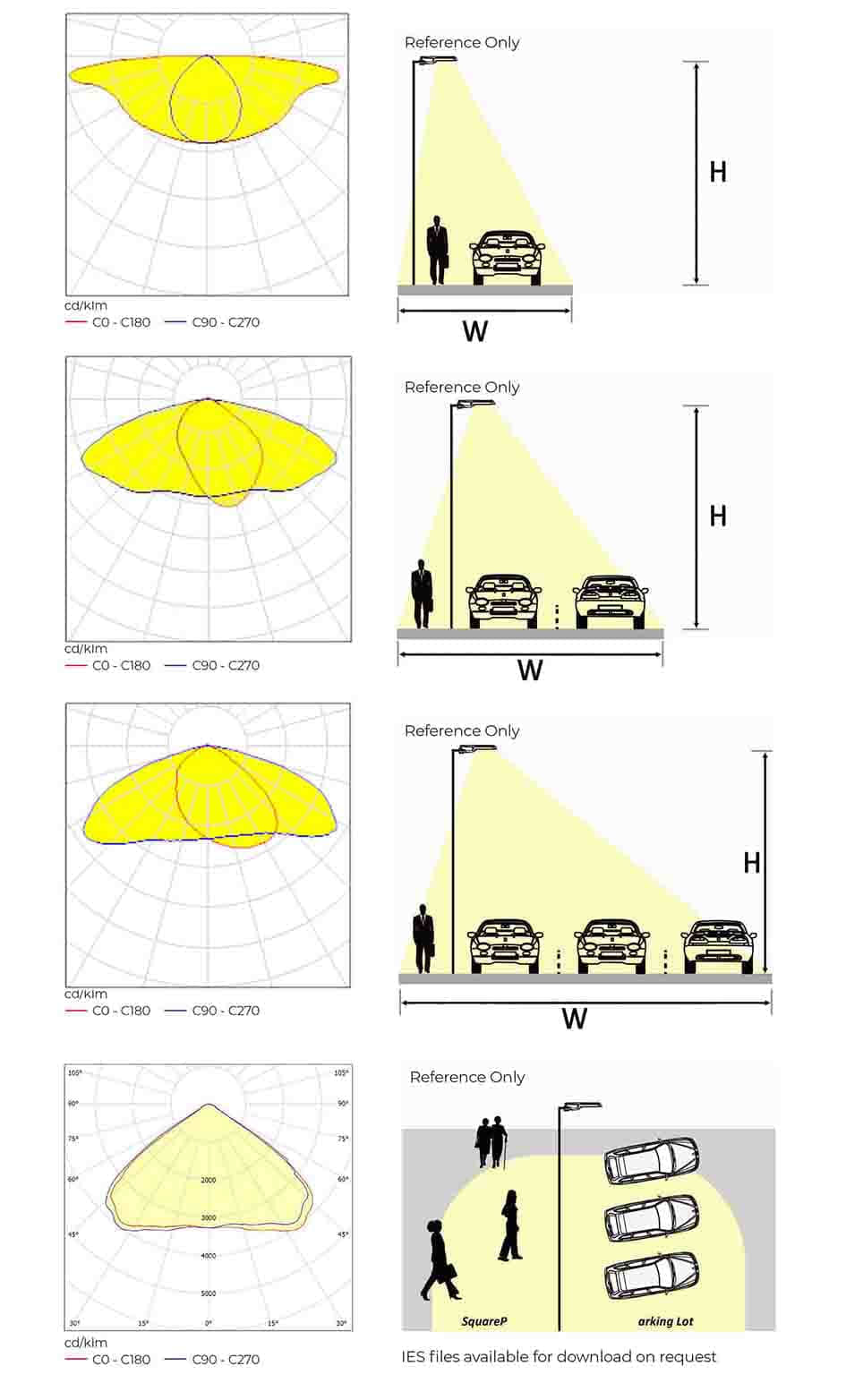

>> LED Distribution Diagram
Type I
Application
Single Driveway| Walkway/ Cycleway| Branch Roads
IES Classification: Type I - short,Medium,long
W≤1*H
Type II
Application
Two Driveway | Driveway Entrance | Urban Main Roads
IES Classification: Type II - short,Medium,long
1*H＜W≤1.75*H
Type III
Application
Three Driveway | Highway | Parking Lot/Area
IES Classification: Type III - short,Medium,long
1.75*H＜W≤2.75*H
Type VS
Application
Parking Lot | Square | Area
IES Classification: Type VS - short,Medium,long
Diameter≤1*H
>> Product Applications
1. Expressway and highways
to ensure safety and visibility of drivers,expressway and highways lighting need to be designed with adequate illuminance levels which is usually measured in lux, excellent uniformity to minimize glare and shadows, higher color rendering to accurately render colors of objects and energy saving lamp fixture to save electricity bills for long time working.
2. Main road in the city
Such roads are usually full of crowded people even at the late night, to avoid car accidents, the lighting on the road should keep working at high power for the whole night,meanwhile, main roads in the city are having limited space for poles installing on two sides, which requests lighting installed to have a wider covering area. For such cases, All in two solar street lights are recommended from Dison group.
3. Industrial and commercial areas
The lighting in these areas provide basically lighting for security purpose, must be durable and weather-resistant to withstand harsh environmental conditions such as rain, snow, and extreme temperatures. at the same time, it should have higher energy efficiency to save cost for the owner.
