>> Product Advantages
| HIGH STRENGTH RAW MATERIAL Q235 high-quality steel is used as the raw material for solar street light poles. Its high strength characteristics give the street light poles excellent bearing capacity and can stably support solar panels and lamps. |
| HDG PROTECTION The zinc layer formed on the steel surface by the hot-dip galvanizing process is like a solid "protective suit" for the light pole. It can effectively protect the light pole for 20-30 years, greatly extending its service life and reducing maintenance and replacement costs. |
| EXCELLENT WELDING Welding operators must have the corresponding qualifications and skills, and use a variety of testing methods to conduct comprehensive testing on the welding quality of solar street light poles to ensure the internal quality of the weld. |
| MARINE GRADE COATING Solar street light poles can flexibly adjust the height of the poles and the power of the lamps according to the width of the road and the lighting requirements to meet the lighting standards of different roads. |
| GREAT ANTI-RUST TREATMENT First, hot-dip galvanizing is performed, and then powder coating or coating with a paint coating with good corrosion resistance is performed to further enhance the anti-rust ability.The lamp pole is not only highly anti-rust, but also has good aesthetics. |

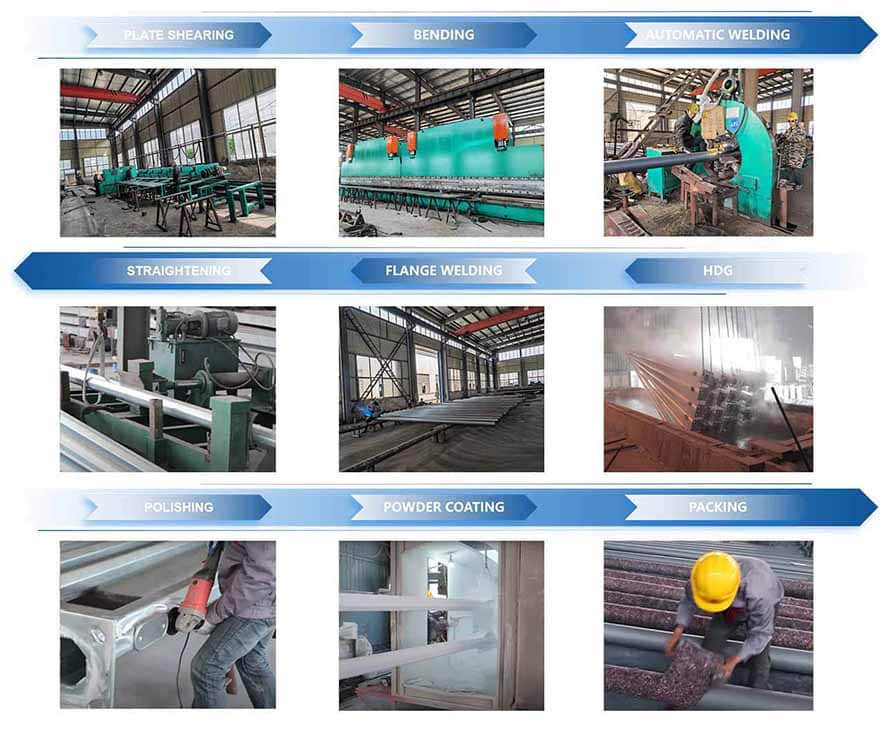

>> Product Processing

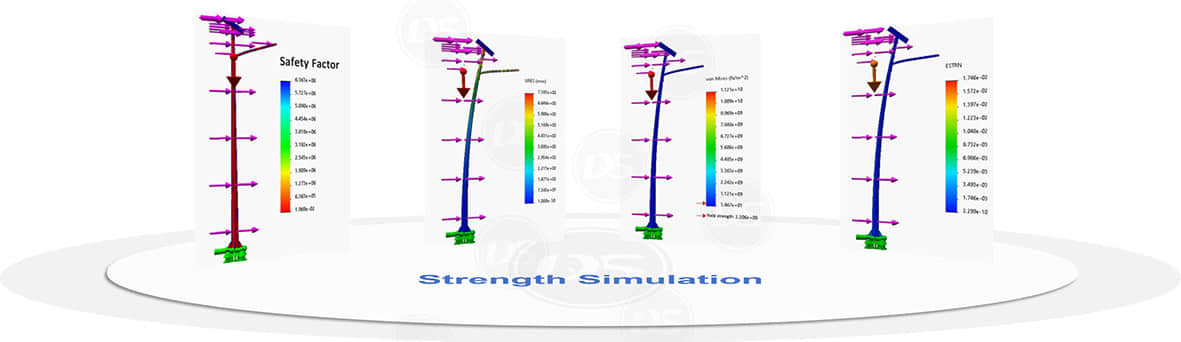

Simulation Process for LED street light pole in High Wind areas
The strength simulation process for LED street light pole typically in high wind areas involves not only creating a digital model of the structure using specialized software, but also taking into account the geometry, material properties, and support conditions of the high mast light, as well as the expected wind loads based on the site location and local climate data. By applying these wind loads to the model, engineers can simulate the behavior of the structure under different wind conditions and assess its performance.
How Is Quality Of LED street light pole Guaranteed
The use of professional equipment allows Dison Group to ensure the consistency in the manufacturing process, resulting in street lighting poles that are uniform in quality.In addition to using professional equipment, we also implement a strict quality control system to maintain the highest standards of quality in our street lighting poles. Through strict testing and inspection processes, Dison Group is able to identify and address any potential issues or defects before delivery.
>> Why Price From Other Manufacturer Is Much Cheap
Contrast of poles between Dison and some others
Recommended Technical Parameters
Height | Upper/Bottom(MM) | THK(MM) | Flange(MM) | Basic(MM) |
6M | 60/120 | 2.50 | 240*240*12 | 600MM*M18 |
7M | 70/140 | 2.75 | 260*260*12 | 700MM*M18 |
8M | 70/158 | 3.00 | 280*280*12 | 750MM*M18 |
9M | 80/185 | 3.25 | 300*300*14 | 800MM*M20 |
10M | 80/185 | 3.50 | 320*320*16 | 850MM*M22 |
11M | 80/200 | 3.50 | 350*350*18 | 950MM*M22 |
12M | 80/215 | 3.50 | 350*350*18 | 950MM*M22 |
>> Product Applications
1. Lighting pole for Urban roads
The strength of steel street lamps can support stable operation in environments with heavy traffic and pedestrian flow. Its good processing performance can meet the diverse design requirements of urban roads for street lamp pole height, shape, etc. At the same time, the appearance design and painting can be carried out according to the needs of urban landscape to enhance the overall image of the city.
2. Lighting pole for Industrial park
Steel street light poles are high in strength and can withstand certain external impacts. They can adapt to the driving of heavy vehicles and complex industrial environments in industrial parks, and provide reliable lighting for roads, warehouses, production workshops and other areas within the park.
3. Lighting pole for Squares and parks
Steel street light poles are highly processable and can be made into various uniquely shaped street light poles according to the style and environmental characteristics of squares and parks, blending in with the landscape environment to increase the beauty of the landscape.
>> Product Operate Guide

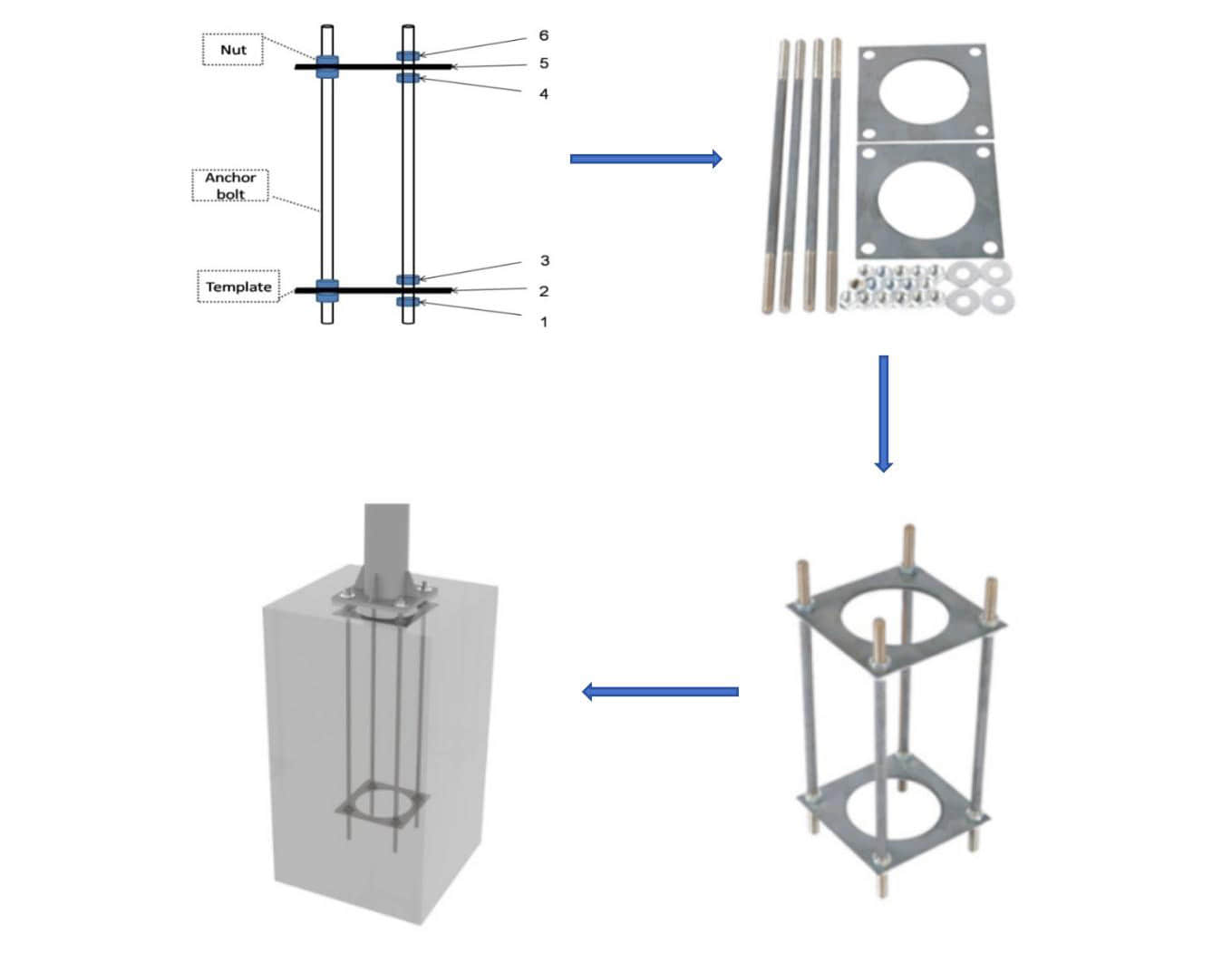

• Assemble the foundation kits of lighting pole following the instruction below:
NOTE
• leave enough space to mount flange during securing inner nut.
• install the template with level meter and ensure it is leveled.
• Wrap the screws on the top side with tape to protect it from being contaminated by concrete.
